M-BAR5+XBA5+2X XBA13 + XBA7

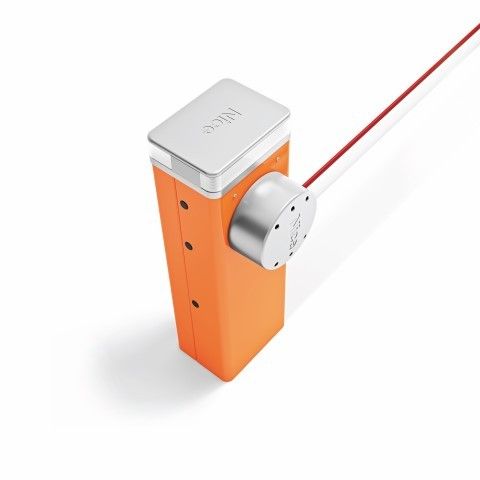

Irreversible 230 Vac motor, 24 Vdc motor, with foundation plate, for 4 or 5 m rods, with steel container and with protective cataphoresis and painted treatment. For intensive use. Barrier-operated systems for controlling road access in parking areas, private and condominium passages, even with high traffic intensity.

Modular: practical composition of the rods using the aluminum expansion joint.

Possibility of controlling the movement of two opposing automations in intelligent mode thanks to the "master/slave" function.

Strength and reliability: sturdy steel structure, new high-strength balancing springs guaranteed for up to 1,000,000 maneuvers and elliptical section rod with high resistance to gusts of wind.

Optional flashing or traffic light, which can be integrated into the cover.

Motion control with encoder and electromechanical limit switches.

More comfort in the programming and maintenance phases: the separate compartments for the electronics and mechanics protect the internal parts from any risks. Quick and easy access to the control unit positioned in the upper part of the barrier body.

The photocells, completely invisible from the outside, are applied with a simple fixing in the compartments provided in the barrier body.

More reliability and safety: obstacle detection and monitoring of motor absorption during the movement of the automation. Automatic diagnosis of anomalies during operation and consequent indication of the type through different combinations of flashes.

Prepared for the connection of latest generation optical and resistive sensitive edges (with 8.2 KOhm resistance).

Energy saving: when the system is not in use it goes into stand-by reducing consumption.

No black out: operation in the absence of power with the optional batteries housed under the control unit.

Lateral release with Nice triangular key, possibility of installation on both sides

White painted aluminum rod 69x92x5150 mm

Bumper rubber 1 m 9 pieces

Flashing light that can be integrated into the lid
