THEBEN 1030053 LUXA 103 S360-101-12 DE-UP WH

Function Description

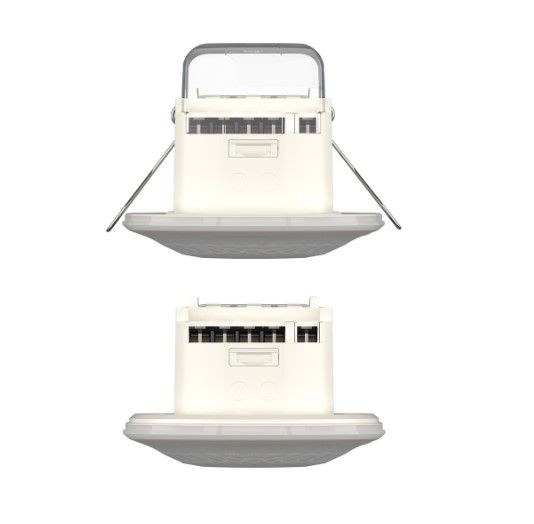

• Passive infrared presence detector, ceiling mounting in the delivered condition or flush mounting with removable springs/contact protection cap and mounting frame supplied
• 360° circular detection range, Ø 12 m (113 m²) with 3 m mounting height
• 1 light channel (230 V relay) and 1 presence channel (potential-free relay for HVAC control)
• Expansion of the detection range thanks to parallel connection, a maximum of 8 detectors can be connected in parallel
• Possibility of networking with theMura Slave wall detector
• Connection solutions for buttons for manual switching
• Fully automatic or semi-automatic operation One oriented brightness measurement (mixed light measurement)
• Learning function, pulse function, test function, staircase light function
• Immediately ready for use thanks to factory preset
