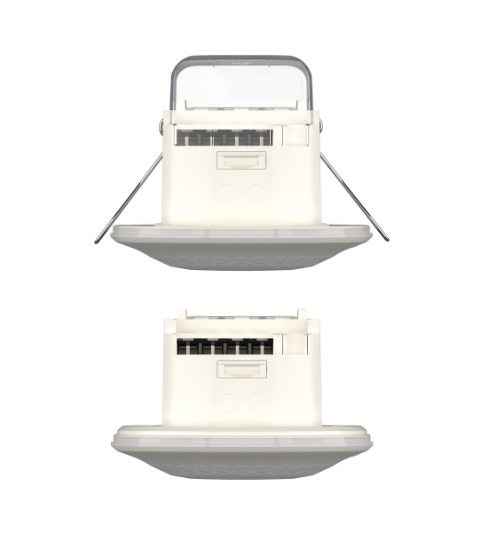

THEBEN 1030052 LUXA 103 S360-100-12 DE-UP WHITE

Function Description

• Passive infrared presence detector, ceiling mounting in the delivered condition or flush mounting with removable springs/contact protection cap and mounting frame supplied
• 360° circular detection range, Ø 12 m (113 m²) with 3 m mounting height
• 1 light channel (230 V relay)
• Expansion of the detection range thanks to parallel connection, a maximum of 8 detectors can be connected in parallel
• Possibility of networking with theMura Slave wall detector
• Connection solutions for buttons for manual switching
• Fully automatic or semi-automatic operation
• An oriented brightness measurement (mixed light measurement)
• Learning function, pulse function, test function, staircase light function
• Immediately ready for use thanks to factory preset
• Changing values and settings is possible with potentiometers and with one of the following optional remote controls:
• Universal remote control and via theSenda B app
• theSenda P assistance remote control
• Optional user remote control for theSenda S/theSenda B manual overmodulation
• Limitation of the detection range with cover clips
• Also suitable for outdoor applications, with the conversion of the installation site the detection range is reduced to Ø 8m
