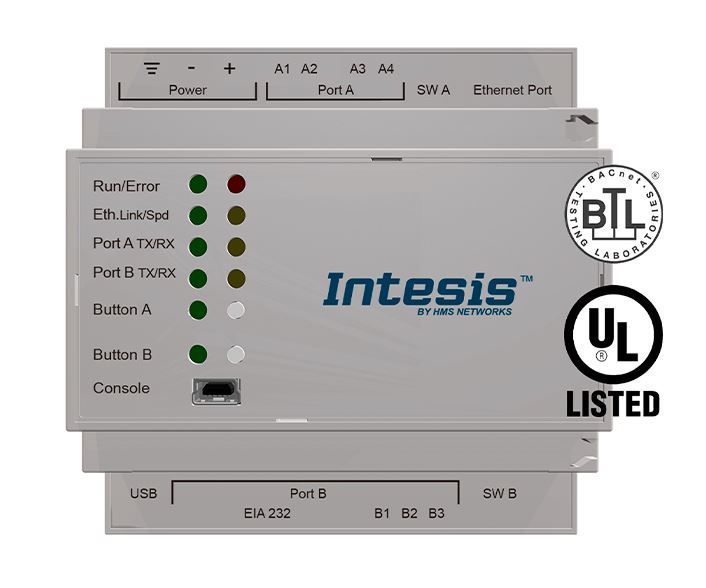

INTESIS INBACLON2500000 LonWorks TP/FT-10 server gateway to BACnet IP and MS/TP - 250 points

The Inthesis INBACLON2500000 gateway is designed to integrate LonWorks TP/FT-10 devices into BACnet-based control systems. This bidirectional gateway offers quick and easy integration thanks to its unique onboard features.

Key Features

The gateway is BTL certified, ensuring 100% compatibility and seamless integration with any BACnet device.

Supported Protocols

• BACnet IP
• BACnet MS/TP
• LonWorks TP/FT-10

Configuration and Integration

<p-The gateway configuration is performed using the Inthesis MAPS software, which allows you to define device settings, download predefined project templates, and import or export created project templates.

The integration process is managed quickly and easily thanks to pre-defined project templates, significantly reducing commission time.

Gateway functionality

• Support for up to 250 data points
• Control of up to 3000 SNVT/UNVT LonWorks variables
• Communication through Ethernet and serial ports
• Support for subscription requests (COV)
• Obstacle of notification classes, calendars, schedules, and trend logs

Interface and Versatility

The gateway can communicate with BACnet devices through Ethernet and serial ports, supporting both BACnet/IP and BACnet MS/TP. In addition, it can be configured to work with Modbus TCP instead of BACnet, offering great integration flexibility.

Certifications and Compliance

• UL Certificate
• BTL Certificate

This gateway is designed to be robust and reliable in the field, facilitating the integration of LonWorks devices into BACnet control systems.
