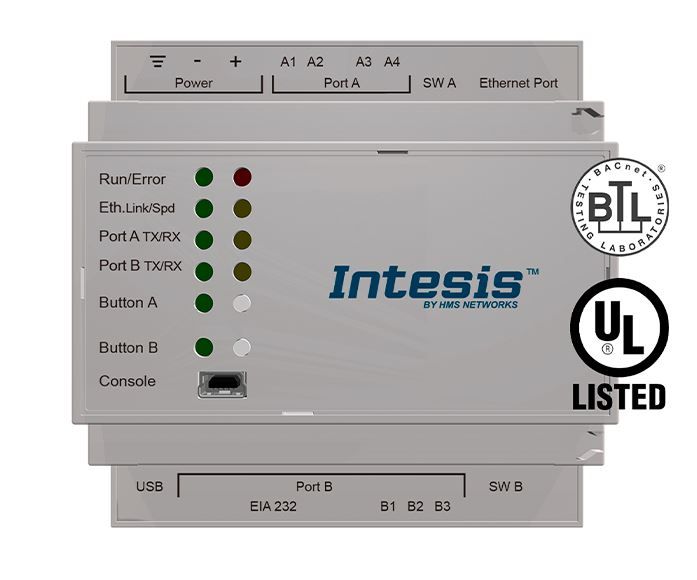

INTESIS INBACLON1000000 LonWorks TP/FT-10 server gateway to BACnet IP and MS/TP - 100 points

The Inthesis INBACLON1000000 gateway is designed to integrate LonWorks TP/FT-10 devices with BACnet-based building management systems (BMS), facilitating communication between these two different technologies.

Main Features

This gateway supports both the BACnet/IP and BACnet MS/TP protocols, allowing LonWorks devices to be accessible and controllable as if they were an integral part of the BACnet system.

Supported Protocols

• BACnet/IP
• BACnet MS/TP
• LonWorks TP/FT-10 (twisted pair free topology at 78 kbps)

Configuration and Management

<p-Configuring the gateway can be done using the Inthesis MAPS configuration tool, which greatly simplifies the integration process. Projects can be created using predefined templates, significantly reducing commissioning times.

<p-The configuration can also be done through the gateway's IP (Console) port. In addition, both the Intesis MAPS configuration tool and the gateway firmware can receive automatic updates.

Supported Variables

• Up to 3000 LonWorks SNVT/UNVT variables can be controlled from the gateway.
• Support for up to 100 points and 64 devices.

Versatility and Flexibility

<p-The gateway is highly versatile and can be configured to work with Modbus TCP instead of BACnet, offering greater flexibility in applications.

Other Features

• Integration of LON devices and their network variables (SNVT) into the BACnet system.
• Access and control LON devices as if they were part of the BACnet system.
• Support for creating and validating product configurations.
