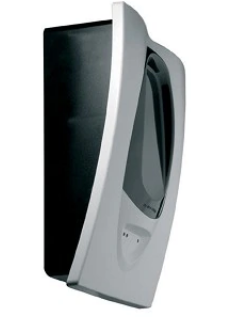

NOTIFIER NFXI-BEAM-E 5-75M ADDRESSABLE LINEAR DETECTOR

Linear smoke detector. consisting of a single optical unit (TRX) and a reflector to be placed on the opposite side. Protection range between 0 and 75 meters or up to 100 meters with a special reflector. Sensitivity adjustable on six levels with two variables depending on the environment. Automatic gain control to compensate for signal loss due to dust. Easy alignment thanks to the adjustment knobs, the alignment viewfinder and the digital readout of signal strength. Alarm and fault contact. Thanks to a special integrated interface, the detector can talk to the control unit and its address is programmed by means of rotary selectors (from 01 to 99/159). CPR certificate in accordance with EN 54 parts 12 and 17. Operating voltage 15-32Vcc. Absorption at rest 2mA. in 8.5mA alarm. Operating temperature from -30°C to +55°C. Relative humidity up to 93 percent (without condensation). Degree of protection IP 54.
