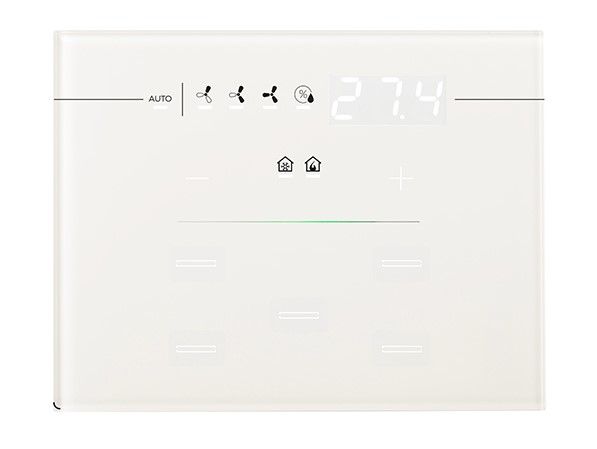

EELECTRON 9025GT307L01-H LINE SERIES GLASS - RGB - WHITE HOTEL DISPLAY

MT Code: ELC_9025GT307L01-H
Manufacturer Code: 9025GT307L01-H
Brand: EELECTRON

The 9025GT307L01-H Thermostat is a high-precision KNX® temperature and humidity controller, designed to efficiently and individually manage environmental comfort in various environments, both residential and commercial.

Key Features

This device includes 7 configurable capacitive buttons, allowing the management of on/off commands, dimmers, shutters and blinds, as well as the execution and learning of scenarios and sequences of objects.

Thermal and Humidity Control

The 2-stage thermostat is equipped with an integrated PI controller, ideal for controlling heating and cooling appliances, valves and 2- and 4-pipe fan coils. The integrated version with temperature and relative humidity sensor allows the control of actuators for the regulation of ambient humidity.

Sensors and Connections

The device is equipped with an on-board temperature probe and a rear input configurable as digital or analog. It is possible to connect an additional NTC probe (eelectron code TS01A01ACC or TS01B01ACC) to obtain a second temperature measurement.

Visualization and Feedback

The RGB LED bar on the front side displays the operating states of the thermostat and other quantities available on the KNX bus, providing immediate and clear feedback on the operation of the system.

Design and Integration

The glass covers are available in versions for hotel or residential applications and can be customized with backlit and interchangeable icons, associated with the configured functions. The device can be installed on boxes of 2 or 3 modules and is compatible with the main international standards.
