FAAC 105633445 Hydraulic Swing Gate Automation 1.8m For Door LEADER KIT 230V GREEN

Hydraulic Swing Gate Automation 1.8m For Door LEADER KIT 230V GREEN

230V hydraulic automation Maximum width of a single door 1.8 m

Complete kit for the automation of hinged doors with hydraulic actuators. Top of the range, heavy-duty hydraulic product for FAAC swing doors. 402 CBC 230V hydraulic actuator 250mm stroke for hinged doors up to 1.8 meters in length per door. Reliable and resistant, internal mechanics produced entirely from full, the use of this actuator is suitable for intensive work cycles on condominiums and high mobility accesses. CBC model with flow control valves in both maneuvers and total blockage when opening and closing and does not require an electric lock for doors smaller than 2 meters. Pump Oil Capacity 1 Liter. Unlocking system with a hexagonal key located at the top of the motor. E045s 230V control unit for 1 or 2 operators up to a maximum of 800 W, with the possibility of slowdowns when opening and closing, adjustment via display, XF433 3-pin external radio receiver.

Technical Characteristics: Network supply voltage 220-240V~ 50/60 Hz Single-phase asynchronous electric motor Maximum power 220 W Maximum thrust force 5000 N (*) Maximum rod speed 13 mm/s (*) Motor-pump group flow rate 1 lpm (*) Stem stroke 250 mm Maximum door opening angle 110° Operating ambient temperature -20°C ÷ + 55°C Thermoprotection 120°C Degree of protection IP55 Weight 6.5 Kg Frequency of use 55 cycles/hour Max door width 1.80 m Oil type FAAC HP OIL Fixing brackets Rear connection to weld/screw on — front connection to weld/screw on Dimensions (LxDxH) 959 x 85 x 85 mm

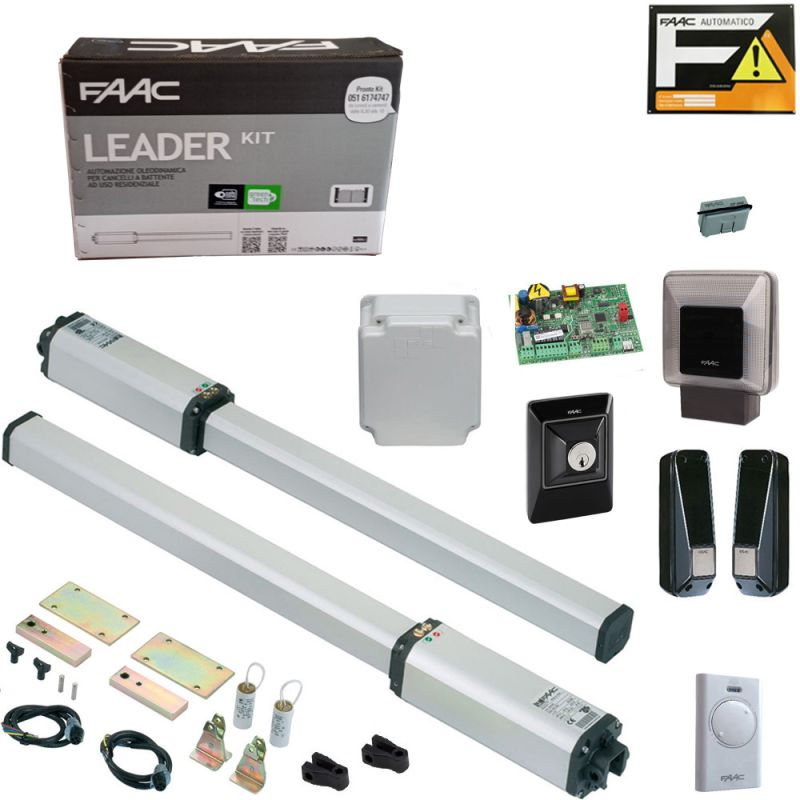

COMPOSITION OF THE KIT: 2 402 CBC 104468 actuator 1 E045s 790077 electronic board 1 Container mod. And for electronic cards 720119 1 XLED Flasher 410029 1 Pair of XP 20B D 785103 photocells 1 XK10 B key selector in BUS 401304 + 71275101 1 XF 433 MHz 787831 Receiver 2 channel XT2 433 SLH LR 787007 1 FAAC Automatic Sign 1 Safety Certifications, instructions and user and maintenance manual
