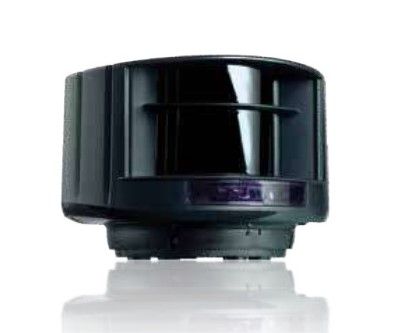

ABTECNO APE-790/I110 LASER SAFETY SENSOR FOR INDUSTRIAL DOORS

The LZR-i100 and LZR-i110 detectors are based on time-of-flight measurement, technology

very precise which guarantees optimal safety on the threshold and in the vicinity of the

door thanks to 4 curtains of laser beams that delimit the same number of detection areas.

PERFORMANCE

- Depth of the area adjustable (maximum 1m) according to the height

of installation

- Safety solution for PL «d» certified industrial doors /

CAT 2 according to EN ISO13849-1 and type E according to EN12453

- High level of security thanks to complete three-dimensional detection in front of the door

- Small object detection *

APPLICATIONS

- Safety when opening and closing the door

thanks to 2 distinct detection zones

- Possible to create 2 virtual buttons for opening the door

INTENDED FOR INDUSTRIAL CONTEXTS

- Filters door vibrations and environmental interference

- Filters door frame deformations due to wind

- IP65 protection rating
