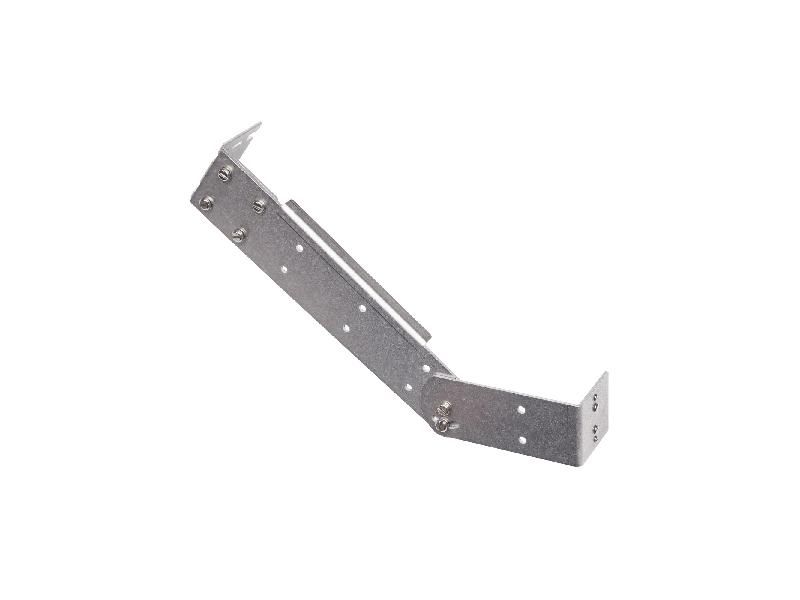

ELSNER 30111 Large articulated arms for weather stations

The ELSNER 30111 large hinge arm is designed for flexible mounting of weather stations and sensors on walls, poles or beams.

Key Features

This hinge arm is made of aluminum and available in two versions: painted in white RAL 9016 (Traffic White) and in raw aluminum, suitable to be painted with customized colors.

Dimensions and Weight

The total length of the arm is approximately 420 mm, with only one adjustable hinges. The weight is about 385 grams.

Compatibility with Weather Stations

• Suntracer KNX weather stations (base), Suntracer KNX-GPS and KNX weather sensors
• P03i-GPS Weather Station (WS1/WS1000 Color/Style Control Systems)
• Solexa control system weather stations, Arexa
• P03-RS485 Weather Stations
• P03-Modbus Weather Station
• P02 weather devices and RM1 rain detector

Included Components

• Angle for wall or pole mounting
• 32 cm flat component for beam mounting
• Front hinge angle
• M6 x 16 mm stainless steel screws and related washers and nuts
• M3 x 5 mm and M4 x 5 mm stainless steel screws
• 6mm stainless steel safety rings

Mounting Options

The hinged arm allows for different mounting options:

• Wall or pole mount using the supplied angle
• Mounting on a beam without the use of the angle
