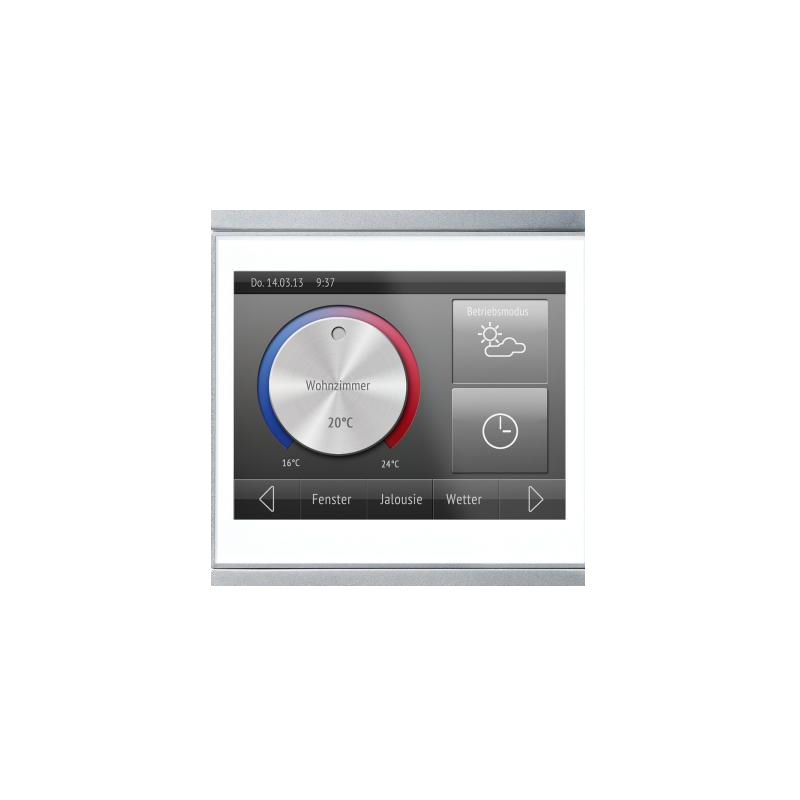

ELSNER 70254 KNX WL Touch Body - white/chrome matt KNX Touch

The ELSNER 70254 product, known as Corlo Touch KNX WL, is a touch panel designed for integration into the KNX home and industrial automation system.

Key Features

This device features a 3.5-inch glass touch interface, allowing for intuitive navigation and a wide range of functionality.

Interface and Customization

The tactile interface allows the configuration of up to 10 pages of displays, each of which can be customized with different control or display areas, such as switches, buttons, lever switches and rotary knobs.

Display symbols can be exchanged using the built-in symbol library or by uploading customized images via a micro SD card.

Network Connectivity and Functionality

The Corlo Touch KNX WL model includes a WLAN interface for wireless data transfer within local networks, allowing the display of predefined web pages by entering the URLs in the ETS software.

Sensors and Lighting

The device is equipped with a proximity sensor that enables the display to be switched on quickly from standby mode and a brightness sensor for automatic adjustment of the display lighting.

Ambient lighting is individually adjustable with RGB colors.

Scene Control and Automation

The Corlo Touch KNX WL supports the control of up to 16 scenes, a timer, an alarm and integrates automation functions for regulating ventilation, dimming and air conditioning.

In addition, it includes 5 automatic channels and control logic with 4 AND logic gates and 4 OR logic gates, each with 4 inputs.

Inputs and Interfaces

Physical Inputs

• 4 inputs for binary contacts or temperature sensors.
• Micro SD card socket for storing image data.
• USB interface.

Installation and Use

The device is configured using the KNX ETS software. It is important to follow the instructions for assembly and operational start-up to avoid damage to electronic components, avoiding exposure to water or dust and condensation.
