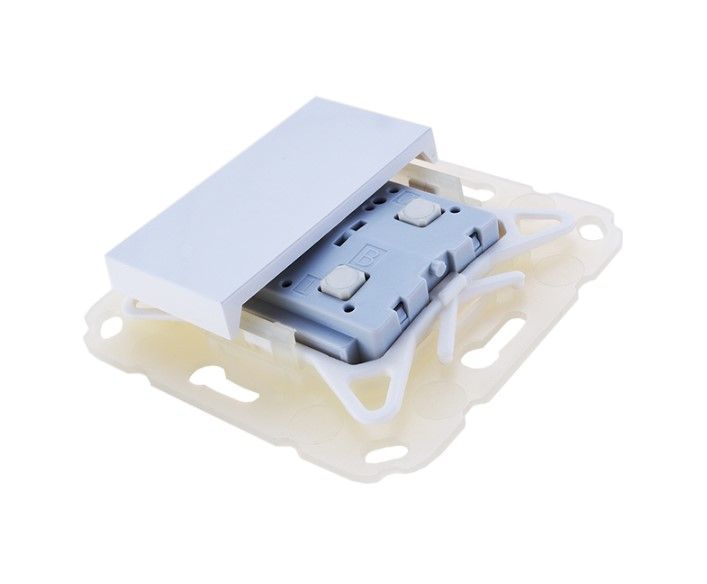

WEINZIERL 5325 KNX TP Push Button Insert 420 secure

<p_The WEINZIERL 5325 KNX TP Push Button 420 secure is a button insert with an integrated bus coupling unit, designed for use in the KNX automation system. This device is available with one or two levers, offering flexibility in configurations.

Mechanical Characteristics

• Plastic housing
• Standardized PTM form factor insert
• Dimensions of the wall mounting plate: 71 x 71 mm, for flush box 68 mm
• Standard frame levers with internal dimensions 55 x 55 mm
• Installation depth (KNX connector): 11 mm

Feeding

• Via KNX bus, about 3 mA

User Interface

• 4 buttons
• KNX programming button with LED (red)

Connectors

• KNX bus connector (red/black)
• External switch/LED connector

The flat design of the device allows for elegant and functional integration into home and industrial automation installations.
