KNX TP Blue IO 550 CV secure

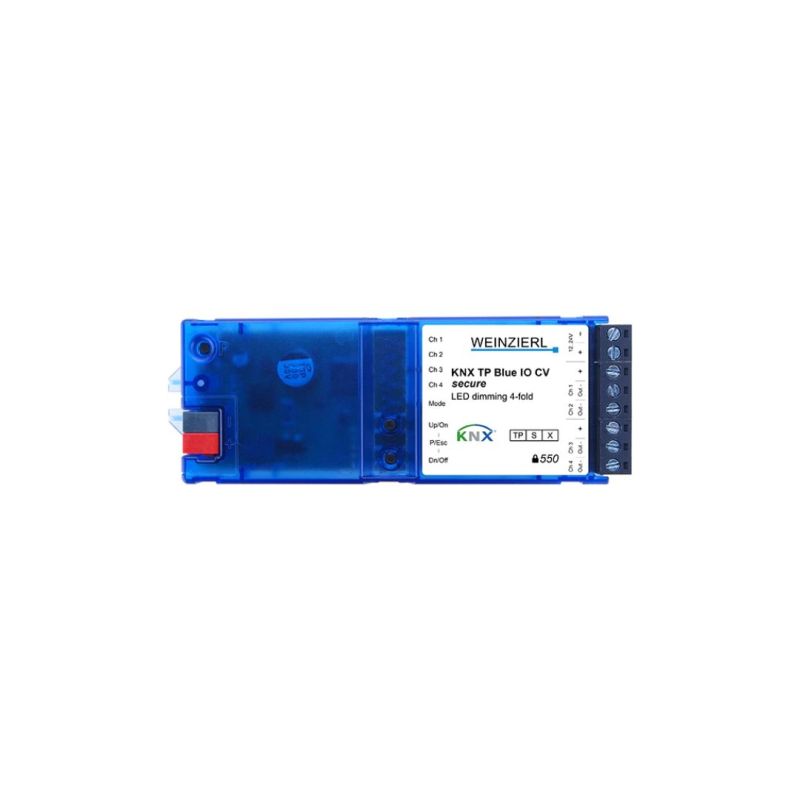

WEINZIERL 5377 KNX TP Blue IO 550 CV secure

MT Code: WNZ_5377
Manufacturer Code: 5377
Brand: WEINZIERL

<p/the WEINZIERL 5377 product, called KNX TP Blue IO 550 CV secure, is a compact actuator dimmer designed to control LEDs with RGB, RGBW and Tunable White configurations. This device is equipped with 4 PWM outputs, allowing it to be used as 4 independent brightness adjustment channels.

Key Features

The actuator dimmer is ideal for controlling LED panels or strips with different color configurations. Each channel can be controlled by means of turning on functions, adjusting the relative brightness and setting the brightness value.

Comfort functions

Several comfort functions are integrated, including scenes, sleep fading, stair lighting and sequencer.

Local Control and Indication

The device includes two buttons and five multicolored LEDs for local operation and device status display. In addition, there is a KNX programming button with a red LED.

Connectors

KNX bus connector (red/black)
Pluggable screw connector (2-pin) for power supply
Pluggable screw connectors (3-pin) for 1/2 and 3/4 brightness adjustment channels
Cross-section of the connectors: 1.5... 2.5 mm²

Feeding

The power supply is via the KNX bus (about 5 mA) and a supply voltage between 12 and 24 V DC.

Output (Dimmer Actuator)

The actuator dimmer is designed for LEDs with constant voltage input and uses a PWM frequency of 480/600 Hz. The maximum load current is 6 A, freely distributable, with a maximum output power of 144 W.
