ELSNER 70259 KNX Touch Body- black/chrome glossy KNX Touch D

<p/the ELSNER 70259 product, called Corlo Touch KNX, is a touch display that is highly integrated into the KNX system, designed to manage and monitor various aspects of domestic and industrial automation.

Key Features

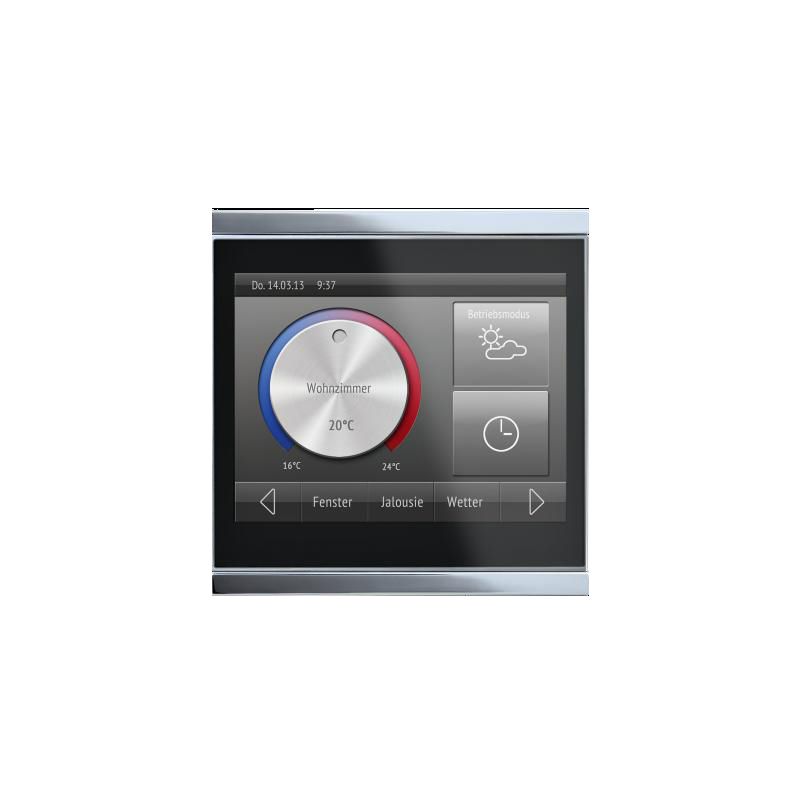

The Corlo Touch KNX 70259 features a 3.5-inch touch-sensitive interface, made of black glass with a shiny chrome edge. This interface allows for intuitive navigation and easy management of system functionality.

Display functionality

• 10 configurable display pages with different areas for control or display, such as switches, buttons, spool switches, rotary knobs and readings.
• Customizable icons for viewing, using the built-in symbol library or images loaded via micro SD card.
• Ambient lighting with individually adjustable RGB colors.
• Integrated proximity sensor for quick activation of the display from standby mode.
• Integrated brightness sensor for automatic adjustment of display lighting.

Scene Control and Automation

• Control of 16 predefined scenes.
• Timer and alarm function.
• Integrated automation for ventilation (windows, ventilation equipment), shading (shutters, blinds, awnings) and the regulation of air conditioning (heating, cooling) and light.
• 5 automatic channels.

Logic and Sensors

• 4 AND logic gates and 4 OR logic gates, each with 4 inputs.
• 16 logic inputs (in the form of communication objects) available as inputs for logic gates.
• 4 inputs for binary contacts or temperature sensors.

Connectivity and Storage

• Presence of a USB port and a micro SD card slot for storing image data.
• Corlo Touch KNX WL model: WLAN interface for wireless data transfer in the local network.

Physical Characteristics

• Case dimensions: approximately 80 × 71 × 49 mm (L × H × D).
• Mounting depth: about 12.5 mm.
• Weight of the display unit: about 140g.
• Degree of protection: IP20.
