ELSNER 70617 KNX TH-UP Touch- pure white RAL 9010 KNX Tempered

The KNX TH-UP Touch temperature and humidity sensor, ELSNER code 70617, is a specialized device for measuring temperature and humidity in the environment, as well as calculating the dew point. This sensor is designed to be integrated into the KNX automation system, allowing efficient and precise management of the indoor climate.

Key Features

The KNX TH-UP Touch sensor measures absolute and relative temperature and humidity, and calculates the dew point. It is able to receive external measured values via the KNX bus, allowing complete integration with other system devices.

Technical Specifications

• Temperature Measurement Range: -5°C to +60°C
• Humidity Measurement Range: 0% to 100%
• Operating Ambient Temperature: -5°C to +45°C
• Operating Ambient Humidity (non-condensing): 5% to 95%
• Storage Temperature: -10°C to +60°C
• Overvoltage Category: III
• Degree of Pollution: 2
• IP protection: IP20

Physical Characteristics

• Dimensions (W × H × D): 55mm × 55mm × 35mm
• Support Ring Dimensions (W × H): 71mm × 71mm
• Mounting Depth: 7mm
• Total Weight: about 55g
• Casing material: Genuine glass, plastic
• Available colors: RAL 9010 (white), RAL 9005 (black)

Characteristics of the KNX Bus

• Transmission Medium: TP1-256
• Configuration Mode: S-Mode
• Maximum Group Addresses: 254
• Maximum Assignments: 254
• Communication Objects: 186
• Nominal Voltage: 30V DC SELV
• Maximum Power Consumption: 10mA

Connectivity and Installation

• KNX Insertion Connector: Conductor Diameter 0.6... 0.8mm, Sheathing Length 5mm
• Data Recovery Time after Bus Voltage Restoration: about 6 seconds

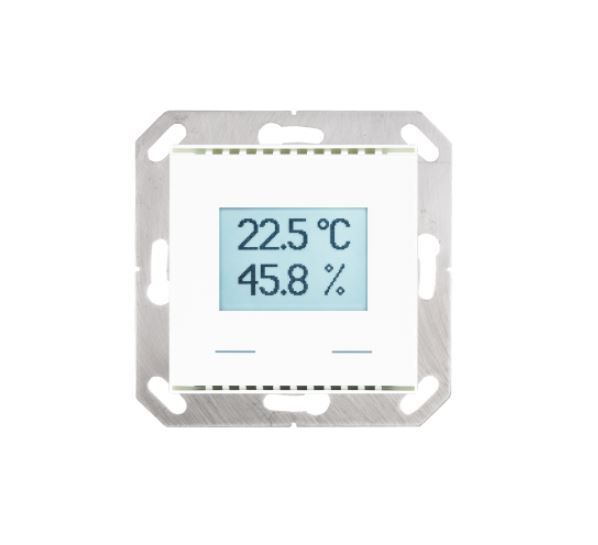

The KNX TH-UP Touch sensor also includes touch buttons for intuitive management and a display to display the measured values. This device is ideal for ensuring an optimal indoor climate and for being integrated into complex KNX automation systems.
