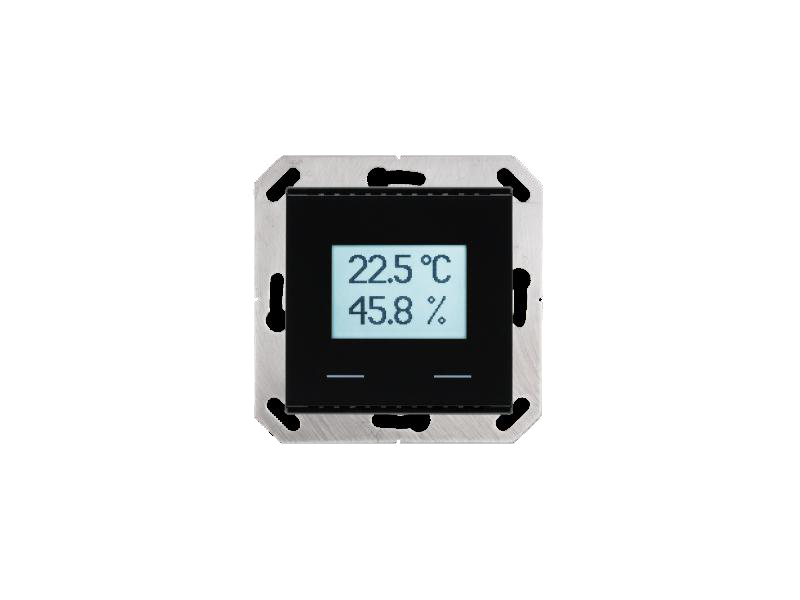

ELSNER 70616 KNX TH-UP Touch-jet black RAL 9005 KNX Temperature

<p/the ELSNER 70616 product, called KNX TH-UP Touch, is a temperature and humidity sensor designed for integration into the KNX automation system. This device measures the temperature and absolute and relative humidity in the environment and calculates the dew point.

Technical characteristics

The KNX TH-UP Touch sensor has a compact and robust design, with a housing made of authentic glass and plastic. It is available in black (RAL 9005) and white (RAL 9010).

Dimensions and Assembly

• Dimensions: 55mm × 55mm × 35mm
• Mounting depth: 7mm
• Support ring: 71mm × 71mm
• Total weight: about 55g

Environmental Conditions

• Ambient temperature: -5°C... +45°C
• Ambient humidity (non-condensing): 5%... 95%
• Storage temperature: -10°C... +60°C

Sensors

• Temperature measurement range: -5°C... +60°C
• Humidity measurement range: 0%... 100%

Interface and Communication

• KNX bus medium: TP1-256
• Setup mode: S-Mode
• Maximum group addresses: 254
• Maximum allocations: 254
• Communication objects: 186
• Nominal voltage: 30V DC SELV
• Maximum power consumption: 10mA
• KNX clamp connector: conductor diameter 0.6... 0.8mm, sheath length 5mm
• Duration after the bus voltage is restored until data is received: about 6s

Other Features

• Degree of protection: IP20
• Overvoltage category: III
• Pollution degree: 2
• Touch buttons for user interactions
