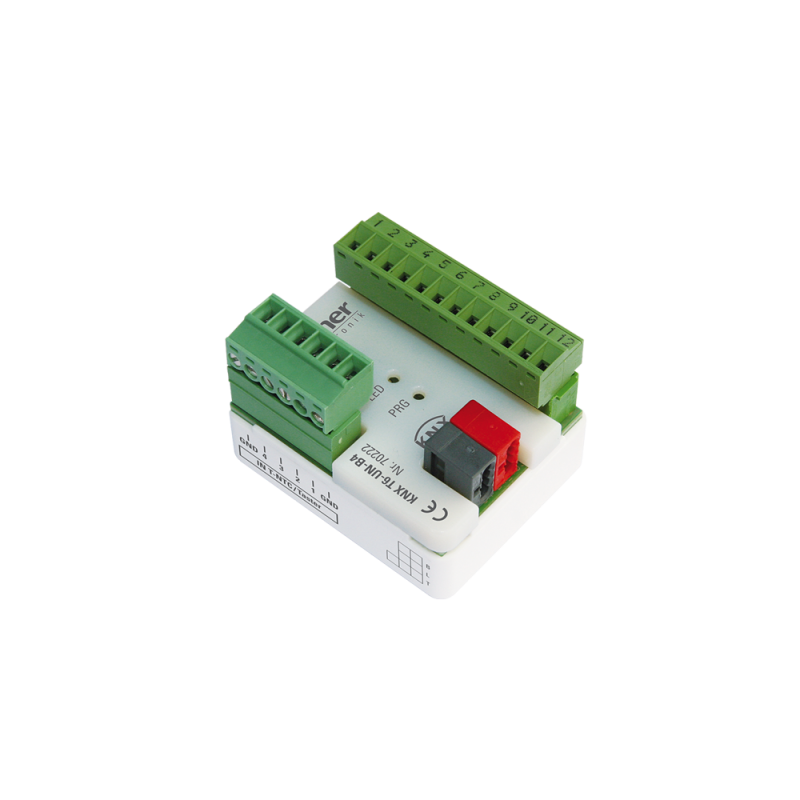

ELSNER 70222 KNX T6-UN-B4 KNX evaluation unit for temperature sensors

ELSNER's KNX T6-UN-B4 temperature assessment device is designed to precisely manage temperature measurements and other control functions within domestic and industrial automation environments.

Key Features

This device has six inputs for the T-100 or T-130 temperature sensors, allowing accurate management of thermal measurements. In addition, there are four analog/digital inputs that can be used for buttons or T-NTC temperature sensors.

Inputs and Outputs

• Six inputs for T-100 or T-130 temperature sensors.
• Four analog/digital inputs for buttons or T-NTC temperature sensors.
• Six switched outputs with adjustable threshold values.

Temperature Control

Temperature measurement values from all inputs can be processed with external measurement values to provide a combined value, such as total temperature or average temperature. The device includes six PI regulators for controlling heating and cooling, both one and two phase.

Additional Logic and Functionality

• Four AND logic gates and four OR logic gates, each with four inputs. The 16 logic inputs (in the form of communication objects) can be used as inputs for logic gates.
• The output of each logic gate can be optionally configured as 1-bit or 2 x 8-bit.

Installation and Configuration

The electronic evaluation unit must be installed in a housing, making sure that the chosen location does not significantly affect the measurement results. The device is configured using the KNX ETS software.

Technical characteristics

• Plastic case, white color.
• Dimensions of the evaluation electronics: approximately 38 x 47 x 32 mm (L x H x D).
• Protection category IP 20.
