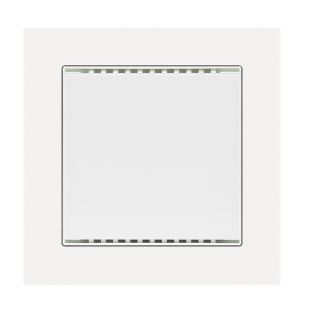

ELSNER 70632 KNX T-UP gl Temperature sensor, white

The ELSNER 70632 KNX T-UP gl temperature sensor is a specialized device for measuring ambient temperature, designed to be integrated into domestic and industrial automation systems based on the KNX protocol.

Key Features

This sensor measures room temperature and can receive external measured values via bus, combining them with its own data to generate an overall temperature value adjustable in percentage.

Temperature Measurement and Control

The sensor is equipped with a PI (Proportional-Integrative) controller for heating and cooling control, with the possibility of configuring separate setpoint values or a base setpoint value. The threshold values can be adjusted by parameter or via communication objects.

Logic and Comparison of Values

The device includes 4 AND logic gates and 4 OR logic gates, each with 4 inputs, which can use switching incidents and 16 logic inputs in the form of communication objects. In addition, there are 2 comparators of drive variables for the output of minimum, maximum or average values, each with 5 inputs for values received via communication objects.

Configuration and Communication

Technical Specifications

• Temperature measurement range: 0°C to +50°C
• Color: similar to RAL 9010 (pure white) or RAL 9005 (black)
• Mounting: input box installation
• Degree of protection: IP 20
• Dimensions: approx. 60 x 60 mm (L x H), mounting depth approx. 8 mm
• Total weight: about 50g
• Ambient operating temperature: 0°C to +50°C, storage -10°C to +60°C
• Ambient humidity: maximum 95% RH, avoid condensation
• Operating voltage: KNX bus voltage
• Bus current: maximum 10 mA

Installation Requirements

For installation, a cover frame (for 60 x 60 mm insert) and a mounting plate (77 mm) are required for the Swiss installation standard, not included in the package.
