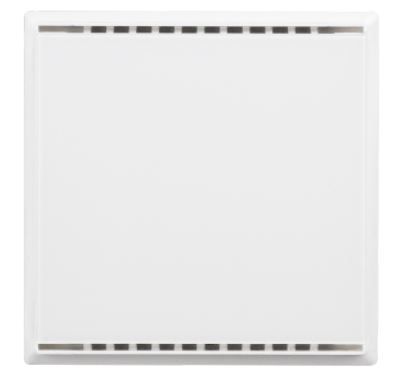

ELSNER 70635 KNX T-UP gl CH- pure white RAL 9010 Temperature Se

MT Code: ELS_70635
Manufacturer Code: 70635
Brand: ELSNER

The KNX T-UP gl CH temperature sensor, ELSNER code 70635, is a specialized device for measuring and controlling temperature in the field of home and building automation.

Key Features

This sensor is designed to be integrated into the KNX system and offers several key features:

Temperature measurement with a measurement range from 0 to +50°C.
Calculation of mixed values combining direct measurement with external values, with proportions adjustable in percentage.
Temperature control through a PI (Proportional-Integrative) regulator for heating and cooling, with the possibility of configuring separate target values or a base temperature.

Control and Logic Functionality

The device includes:

Adjustable temperature thresholds by parameter or by means of communication objects: 3 temperature values.
4 AND logic gates and 4 OR logic gates, each with 4 inputs. Each switching event and 16 logic inputs in the form of communication objects can be used as inputs for the logic gates. The output of each port can be optionally configured as 1 bit or 2 x 8 bit.
2 drive variable comparators for the output of minimum, maximum or average values. Each with 5 inputs (for values received through communication objects).

Configuration and Integration

The device is configured using the KNX ETS software.

Physical Characteristics

The KNX T-UP gl CH sensor has the following physical characteristics:

Real glass and plastic case.
Available colors: similar to RAL 9010 (pure white) and similar to RAL 9005 (jet black).
Input box installation.
Protection category IP 20.
Dimensions: approximately 60 x 60 mm (L x H), mounting depth approximately 8 mm.
Total weight: about 50g.
Ambient operating temperature: 0... +50°C, storage temperature: -10... +60°C.
Maximum relative humidity: 95% RH, avoid condensation.
Operating voltage: KNX bus voltage.
Bus current: 10 mA maximum.
Data output: KNX +/- bus terminal.
Group addresses: 254 maximum.
Communication objects: 152.
