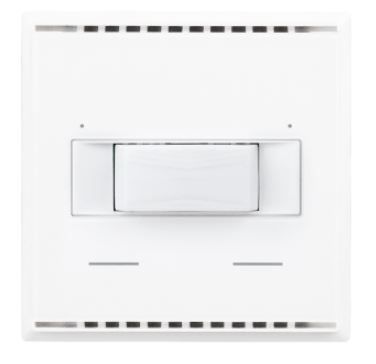

ELSNER 70851 KNX T-L-PR-up Touch CH Presence, brightness and temperature sensor, white

The KNX presence sensor T-L-pr-up Touch CH, code 70851, is a versatile and highly integrated device for the KNX building bus system. This sensor is designed to detect the presence of people, measure brightness and temperature, offering a complete solution for managing lighting and environmental comfort.

Key Features

The sensor uses a passive infrared (PIR) detection method to detect the presence of people, with a horizontal coverage angle of about 150° and vertical of about 35°, and a detection range of about 5 meters.

Brightness and Temperature Measurement

The sensor is able to measure brightness in the range from 0 to 20,000 lux, allowing you to set a brightness limit value using parameters or communication objects. In addition, it measures the temperature in the range from -5°C to +60°C, allowing the measured values to be combined with the external ones in a proportion that can be set as a percentage.

Logic and Communication

The device includes 2 AND logic gates and 2 OR logic gates, each with 4 inputs. All the switching events and the 8 logic inputs (in the form of communication objects) can be used as inputs for the logic gates. The output of each logic gate can be optionally configured as 1 bit or 2 x 8 bits.

User Interface

The sensor is equipped with 2 touch buttons, configurable as switches, toggles, dimmers or as an 8 or 16 bit encoder to recall or memorize scenes. In addition, it includes 2 LEDs that can be configured separately to flash or light up using communication objects.

Technical Specifications

• Case studies: Plastic, glass and metal
• Color: RAL 9010 (white) and RAL 9005 (black)
• Degree of protection: IP20
• Dimensions: 55mm x 55mm x 35mm (with 71mm x 71mm support ring and 10mm mounting depth)
• Weight: about 50g
• Ambient temperature: -5°C to +45°C
• Ambient humidity (non-condensing): 0% to 95%
• Storage temperature: -25°C to +70°C
• Overvoltage category: III
• Pollution degree: 2
• KNX bus: Medium TP1-256, S-Mode configuration mode
• Maximum group addresses: 205
• Maximum allocations: 205
• Communication objects: 86
• Nominal voltage: 30V DC SELV
• Power consumption: ≤ 10mA
• KNX connector: insertion terminal, conductor diameter 0.6... 0.8mm, sheath length 5mm
• Recovery time after the bus voltage resumes: about 6 seconds
