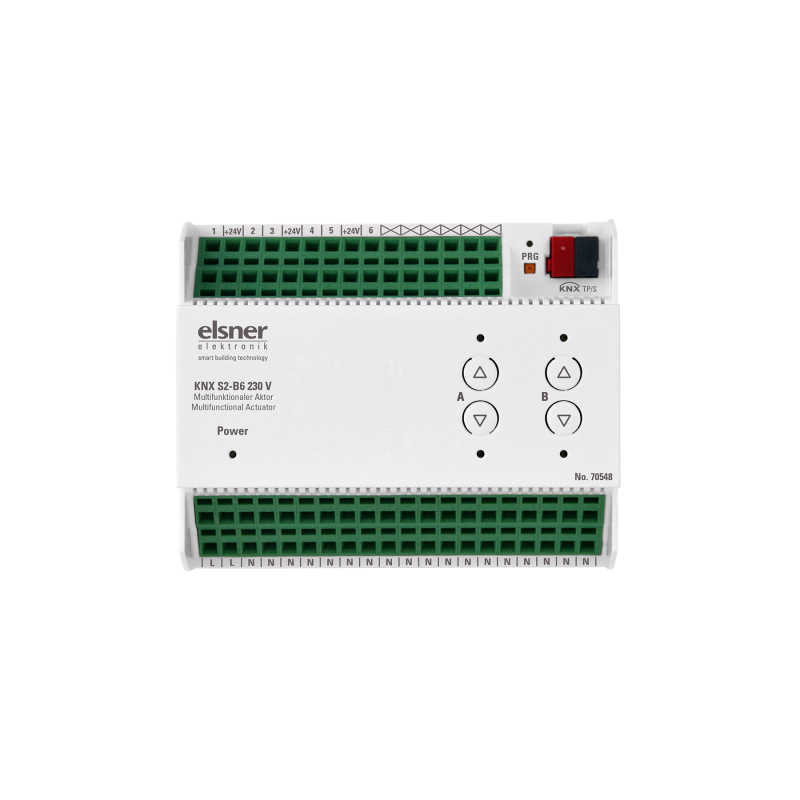

ELSNER 70531 KNX S2-B6 230 V KNX Actuator- 2 Multifunctional OUT- 6 Inputs
- MT Code
- ELS_70531
- Manufacturer Code
- 70531
- Brand
- ELSNER
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
The Actuators KNX S4-B10, KNX S2-B6 and KNX S1-B2 230 V with integrated facade control have multifunctional outputs, pairs of buttons and monitoring LEDs. Each of the multifunctional outputs can connect to either a drive with Up/Down control (blinds, awnings, shutters, windows) or two switchable devices (On/Off for light and ventilation). The connected drives and devices can be operated directly on the actuator
or via connected hand switches.
The automation can be specified externally or internally. Internally, there are numerous options available for blocking, locking (e.g. master-slave) and priority definition (e.g. manual-automatic). Scenes can be saved and called up via the bus (scene control with 16 scenes per drive).
Binary inputs can be used either for direct operation (e.g. hand switches) or as bus switches (or also for e.g. alarm notifications). The desired behaviour can be defined precisely through selection of the response times in Standard, Comfort or Deadman mode.e times in Standard, Comfort or Deadman mode.
Data Sheet
Codice Produttore | 70531 |
---|---|
Brand | ELSNER |
