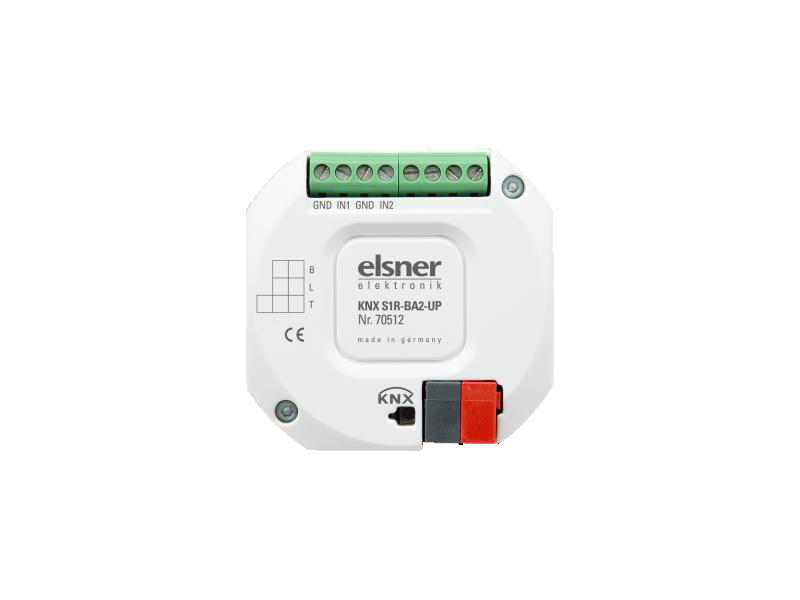

ELSNER 70512 KNX S1R-BA2-UP KNX Actuator- 1 Multifunctional OUT- 2 A/D Inputs

The KNX S1R Actuators with integrated facade control have a multifunctional output to which a drive with Up/Down control can be connected (blinds, awnings, roller shutters, windows) or two operable devices (On/Off, in case of light and ventilation). Other systems can also be controlled via the potential-free version of the output, e.g. via the manual switch input of a motor control device.

Automatism can be defined as external or internal. Internal automation has more possibilities for blocks, controls (e.g. Master-Slave) and priority specifications (e.g. manual automation). The scenarios can be saved and recalled via bus (scene control with 16 scenarios per drive).

The KNX S1R-BA4-UP and KNX S1R-BA2-UP models have inputs, which are used as bus inputs (switch, alarm messages etc.) or for T-NTC temperature sensors. The KNX S1R-UP model does not have analogue/digital inputs.
