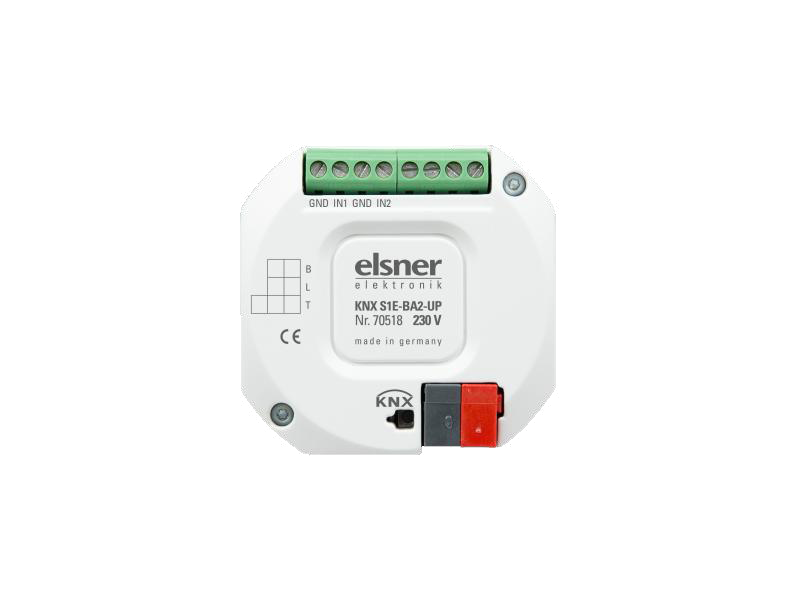

ELSNER 70518 KNX S1E-BA2-UP 230 V KNX Actuator- 1 drive OUT- 2 A/D Inputs

With the Actuators KNX S1E-UP with integrated façade control have a multifunctional output which can connect to either a drive with Up/Down control (blinds, awnings, shutters, windows) or two switchable devices (On/Off for light and ventilation). The electronic output switches silently.

The automation for the drive control is specified externally or internally. Internally, there are numerous options available for blocking, locking (e.g. master-slave) and priority definitions (e.g. manual-automatic). Scenes are saved and called up via the bus (scene control with 16 scenes per drive).

The KNX S1E-BA4-UP and KNX S1E-BA2-UP models are equipped with inputs which are used as bus inputs (buttons, alarms, etc.) or for T-NTC temperature sensors.The KNX S1E-UP model does not have any analogue/digital inputs.
