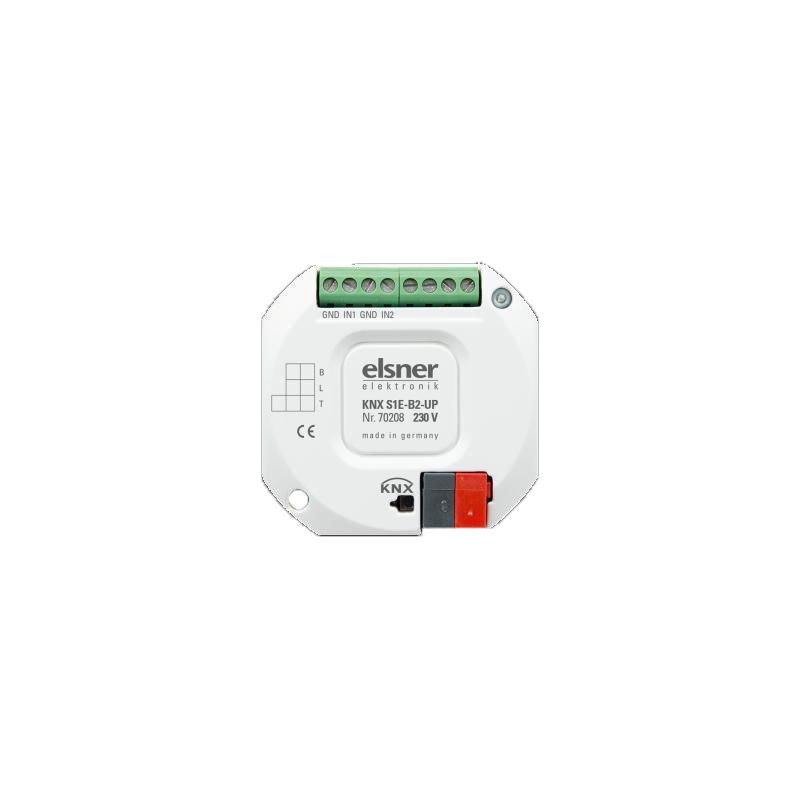

ELSNER 70208 KNX S1E-B2-UP 230 V KNX Actuator with 2 A/D Inputs

Actuators with drive output

With the KNX S1E 230 V actuators with integrated façade control, the AC 230 V motor of a shutter, an awning, a roll-up person or a window is controlled. The electronic output is activated silently.

The automation for the control of the drive can be defined as external or internal. Internal has more possibilities for blocks, controls (e.g. Master-Slave) and priority specifications (e.g. manual automation). The scenarios can be saved and recalled via bus (scenario control with 16 scenarios per drive

The KNX S1E-B4-UP and KNX S1E-B2-UP models have inputs that are used as bus inputs

(switch, alarm messages, etc.) or for T-NTC temperature sensors. The KNX S1E-UP model has no analog/digital inputs.
