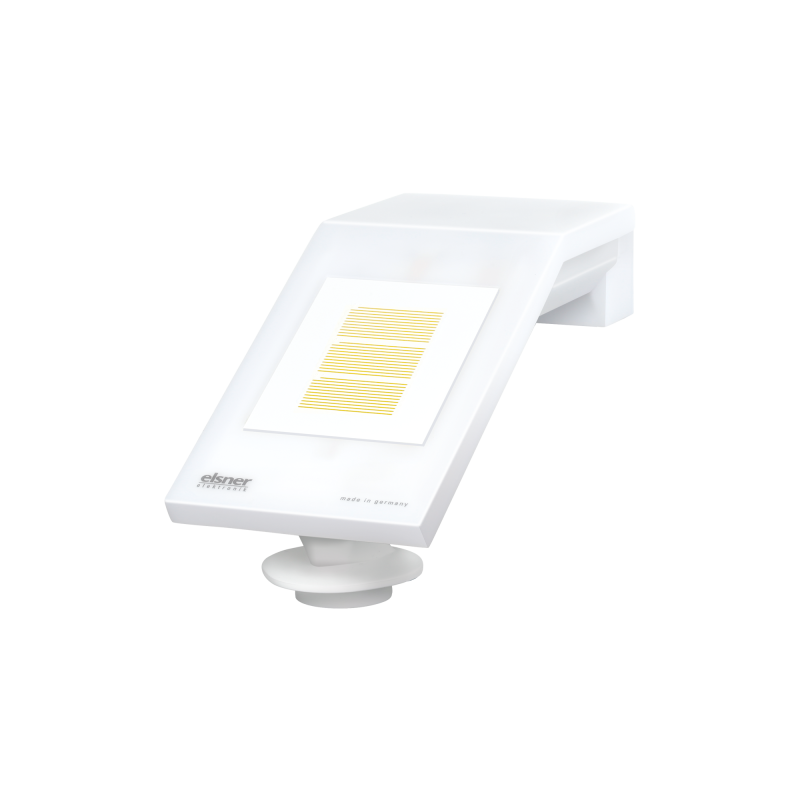

ELSNER 70162 KNX RW sl Rainfall/wind sensor for KNX

Product Description ELSNER 70162 KNX RW sl

The ELSNER 70162 KNX RW sl rain and wind sensor is designed to be integrated into the KNX building bus system. This device measures wind speed and detects the presence of precipitation, providing crucial data for the control and management of building systems.

Technical characteristics

• Wind and Rain Measurement: The sensor detects wind speed and the presence of rain, providing precise values that can be used to adjust irrigation systems, manage safety conditions and optimize plant operation.
• Integration with KNX: The sensor is compatible with the KNX bus system, allowing easy integration with other devices in the building system.
• Mounting: The device can be mounted both on the wall and on poles, offering flexibility in installation.
• Protection Class: The IP 44 protection class guarantees resistance to adverse environmental conditions.
• Operating and Storage Temperatures: The sensor operates between -30°C and +50°C and can be stored between -30°C and +70°C.
• Power and Energy Consumption: The power supply is 30V DC SELV with an energy consumption of ≤ 10 mA.
• Connection to the KNX Bus: The connection is via a KNX connection terminal with a conductor diameter of Ø 0.6... 0.8 mm and a stripping length of 5 mm.
• Data Recovery Time: The sensor restores data within about 5 seconds after the bus voltage is restored.

Physical Specifications

• Dimensions: 96 mm × 77 mm × 118 mm
• Total Weight: About 150 g
• Case Material: Plastic
• <STRONG-Color: White/Transparent
