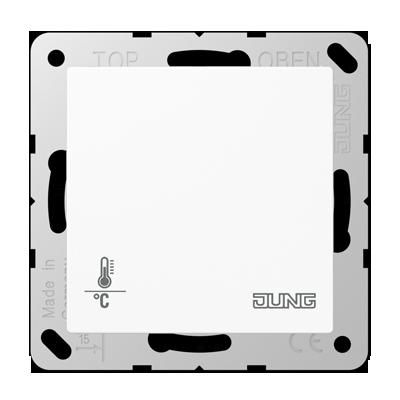

JUNG A2178ORTSWW KNX room thermostat with integrated bus coupler and 4-channel button interface. Without temperature adjustment knob - alpine white
- MT Code
- JNG_A2178ORTSWW
- Manufacturer Code
- A2178ORTSWW
- Brand
- JUNG
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
- Regulation of the temperature of the individual room in KNX systems
- Measurement of the room temperature and comparison with the set temperature
- Specifying the setpoint by selecting the operating mode
- Operating modes: comfort, standby, night operation, frost/heat protection Heating and cooling modes
- Heating and cooling with basic and additional step
- Button interface with four inputs or two outputs (0.8 mA) and two inputs, e.g. for window contacts, buttons, LEDs, etc.
- Input function: switching, brightness adjustment, roller shutter control, light scene extension, brightness or temperature value transmitter
- Optional: external temperature sensor (ref. no.: FF NTC, FF 7.8) connectable to input 4
Data Sheet
Codice a barre | 4011377021679 |
---|---|
Codice Produttore | A2178ORTSWW |
Brand | JUNG |
