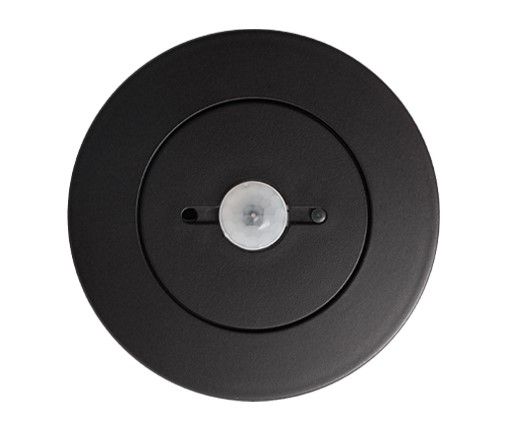

EELECTRON PD00E01KNX-3 KNX PRESENCE SENSOR, BLACK STANDARD

MT Code: ELC_PD00E01KNX-3
Manufacturer Code: PD00E01KNX-3
Brand: EELECTRON

<p_The KNX STANDARD presence sensor (PD00E01KNX) from Eelectron's Multi.Sensor range is designed for ceiling mounting and offers a series of integrated functionalities for building automation.

Key Features

This sensor combines presence detection with brightness control and other automation features.

Presence Detection

The presence detection is based on a passive infrared sensor with 5 independently configurable channels, allowing different functions to be activated according to specific needs.

Brightness Control

The sensor includes a brightness sensor for automatic control of ambient lighting, ensuring optimal lighting comfort.

Digital and Analog Inputs

It has a rear connector with 3 digital inputs, one of which can be configured as an analog input for connecting NTC temperature probes. This allows you to send temperature measurements to the KNX bus or to manage a complete thermostat module.

Thermostat

The thermostat manages 2 stages with an integrated PI controller, ideal for controlling heating and cooling equipment, valves, 2- and 4-pipe fan coils, etc.

Logic Blocks

There are 12 logical blocks available to implement simple expressions with logical or threshold operators, or complex expressions with algebraic and conditional operators. You can use predefined algorithms for proportional temperature and humidity controls or for calculating the dew point.

Virtual Pocket Logic and Circadian Rhythm

The sensor integrates the “Virtual Pocket Logic”, particularly useful in hotel rooms, where a magnetic sensor on the door provides accurate presence information. In addition, it is possible to enable the “Circadian Rhythm” logic, which imposes brightness and color temperature based on predefined curves or the real position of the sun during the day.

Applications

residential
Hotelier
Building

This sensor is part of a range of completely Made in Italy products, designed with a careful eye on design and functionality, ideal for energy savings and building automation.
