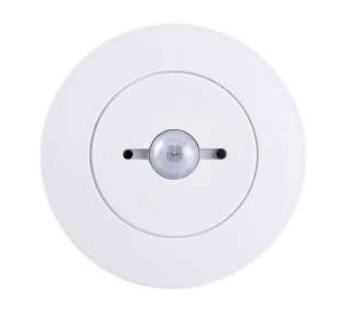

EELECTRON PD00E02KNX KNX BASIC PRESENCE SENSOR, MULTI.SENSOR

MT Code: ELC_PD00E02KNX
Manufacturer Code: PD00E02KNX
Brand: EELECTRON

Description

EELECTRON SEN.PRESENCE+MULTI (PD00E02KNX)

The EELECTRON PD00E02KNX presence sensor is an innovative and versatile solution, designed for the detection of presence and the management of various functions in residential, hotel and commercial environments. This device integrates multiple functionalities, making it a key element for automation systems based on the KNX protocol.

Key Features

The sensor uses a passive infrared sensor to detect the presence of people in the room, with the ability to configure up to 5 independent channels with different functions that can be activated.

Presence Detection

The presence detection is based on a passive infrared sensor, which can be installed on the ceiling up to a maximum height of 5 meters to ensure proper operation. For installations at higher heights, a specific version of the sensor adapted for large heights is available.

Multiple Sensor Capabilities

In addition to the presence detection, the device also includes an integrated temperature sensor, which allows you to monitor and adjust the ambient temperature. In addition, an additional temperature and humidity probe can be connected for a more precise measurement of environmental conditions.

Logic and Programming

The sensor has 12 logical blocks that allow you to create simple expressions with logical or threshold operators, as well as complex expressions with algebraic and conditional operators. These logical blocks make it possible to use predefined algorithms for proportional temperature and humidity controls, dew point calculation and other advanced functions.

Integration with the KNX Protocol

The device is fully compatible with the KNX protocol and can communicate via KNX Data Secure. The configuration takes place through the ETS® application program, allowing a detailed customization of functions and commands.

Command and Control Features

The sensor includes a rear connector with 3 digital inputs that can be connected to potential-free buttons or switches. These inputs can be used for on/off controls, dimming, shutters, blinds, scenarios, sequences and other programmable commands.

Specific Applications

The device is particularly suitable for applications in hotel environments, where the “Virtual Pocket Logic” allows you to manage accurate presence information through a magnetic sensor installed on the door and connected to a digital input.

Visualization and Interface

On the front side of the device there may be a freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus, offering a clear indication of the conditions and states of the system.
