ARCUS-EDS 65001004 KNX-Lunos-Control4-Reg

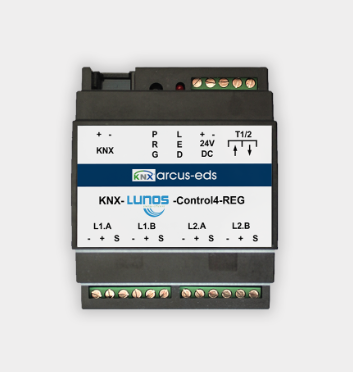

<p (The ARCUS-EDS 65001004 module, also known as KNX-LUNOS-CONTROL4-REG, is a specialized device for controlling decentralized ventilation systems of the Lunos series through the KNX bus.

Key Features

This module allows you to control up to 4 Lunos ventilation devices in a decentralized way, ensuring coordinated and efficient management of ventilation systems.

Technical Specifications

• KNX bus supply voltage: 21.. 32VDC
• Power consumption (KNX): ca. 120mW (@ 24VDC)
• Bus voltage connection: 2-pole terminal (red/black)
• Auxiliary voltage: 24V.. 32VDC, 20W max. (5W/10W/15W/20W @ 1.. 4 fans)
• Auxiliary voltage connection: WAGO clamping block (yellow/white)
• Module electrical efficiency: 92% (with maximum power)
• Button/switch input: 3mA free potential/debounced
• Bus coupler: integrated

Environmental Conditions

• Ambient storage temperature: -20.. +85°C
• Ambient operating temperature: -5.. +45°C
• Humidity: up to 90% non-condensing
• Power reduction: automatic starting at 75°C module temperature

Installation and Protection

• Protection class: IP20
• KNX module installation: din-rail assembly
• KNX module case: black plastic
• KNX module dimensions: DIN-Rail 4TE standard housing (72 mm)
