WEINZIERL 5233 KNX LineCoupler 650

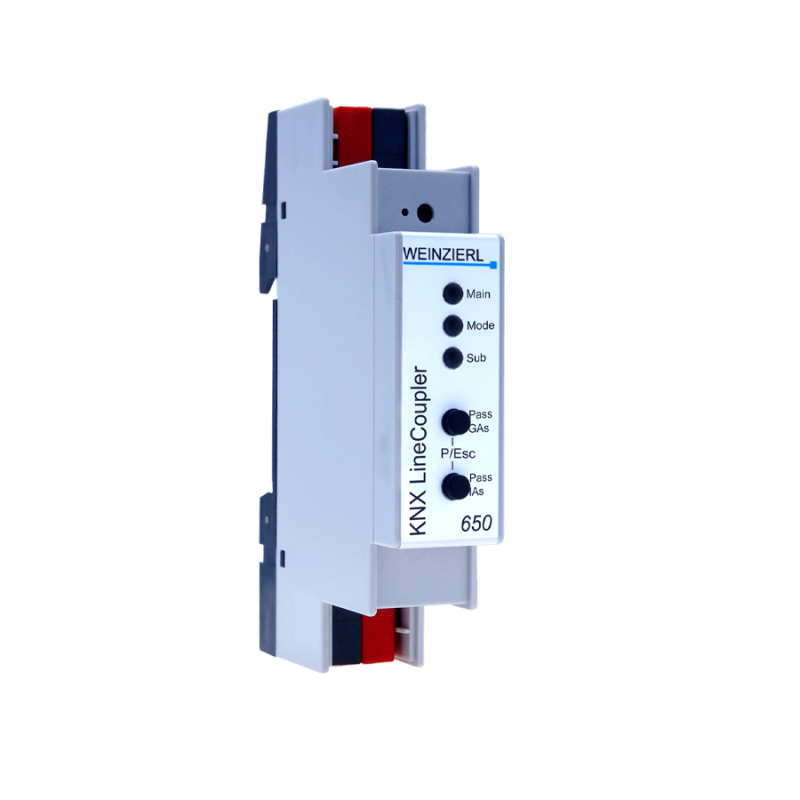

<p_The WEINZIERL 5233, also known as KNX LineCoupler 650, is a device designed to connect two KNX bus segments, such as a KNX line with a KNX area. This coupler has a very compact design and can be mounted on a DIN rail, taking up only 1 module (18 mm) of space.

Technical characteristics

The device ensures galvanic isolation between the lines and has an extended 8K byte filter table, supporting long KNX frames. It is compatible with ETS® software starting with version 4.2.

Mechanical Data

• Plastic (PC) housing
• DIN rail mounting, width: 1 module (18 mm)
• Weight: about 40 g

User Interface

• Two buttons for device settings
• Three multi-color LEDs to indicate operating status and communication errors on the bus
• KNX programming button with LED (red)

Feeding

• Power supply via the main KNX bus, about 5 mA
• Power supply via the secondary KNX bus, about 3 mA

Connectors

• Connector for the main KNX-TP line (red/black)
• Connector for the secondary KNX-TP line (red/black)

Environmental Requirements

• Operating ambient temperature: -5°C to +45°C
• Non-operating ambient temperature: -25°C to +70°C
• Relative humidity (non-condensing): 5% to 93%

The buttons on the front panel allow you to disable the telegram filter for testing purposes. The device is designed for permanent installations in dry indoor environments or inside electrical panels with a DIN rail.
