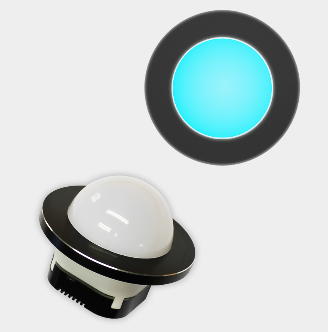

ARCUS-EDS 41040244 KNX-LED4-ARB-H

ARCUS-EDS 41040244 Product Description

The ARCUS-EDS 41040244 product, called KNX-LED4-ARB-H, is an LED lighting element designed for integration into the KNX home automation system. This device is ideal for lighting applications that require precise and flexible management.

Key Features

• The KNX-LED4-ARB-H is an LED driver for RGB (WA) color lighting, suitable for recessed mounting.
• It has 9 pre-set scenes that cannot be changed at the factory and up to 48 customizable scenes can be switched.
• It supports brightness and color adjustment, offering a wide range of options to customize lighting according to the user's needs.

Technical Functionality

• The device operates with a supply voltage between 21 and 32 VDC and has a power consumption of about 240 mW at 24 VDC.
• The operating temperature is between -20°C and +80°C, while the storage temperature ranges from -20°C to +85°C.
• The tolerated ambient humidity is up to 95% without condensation.
• The KNX module has an integrated bus coupler and does not require an auxiliary power supply.
• Communication with the KNX system takes place via the ETS Version 4 protocol or higher.

Assembly and Integration

• The device is designed for flush mounting and can be installed in a standard recessed mounting housing (60/68 mm) in dry indoor environments.
• The KNX module cover is made of black anodized aluminum, available in square or round versions.

The ARCUS-EDS KNX-LED4-ARB-H is a reliable and versatile solution for smart lighting needs in domestic and commercial environments, offering a combination of functionality and ease of use that makes it ideal for KNX system installers.
