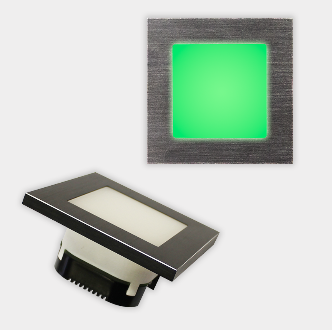

ARCUS-EDS 41040224 KNX-LED4-AQB

The ARCUS-EDS 41040224 product, called KNX-LED4-AQB, is an RGB (WA) lighting element designed for recessed mounting.

Key Features

This device offers a wide range of lighting control features.

Colors and Brightness

The KNX-LED4-AQB supports the selection of solid colors or the adjustment of 16 million different colors through RGB technology. In addition, it includes an RGB-independent amber channel.

The brightness of the LED is 150 lm and is dimmable, allowing precise control of the intensity of the light.

Power and Energy Consumption

The device operates with a KNX bus voltage between 21 and 32 VDC. The power consumption is about 240 mW at 24 VDC.

In addition, it requires an auxiliary voltage between 24 and 32 VDC with a current consumption of about 130 mA.

Environmental Conditions

The KNX-LED4-AQB can operate in a temperature range between 0 and +50°C and can be stored in a temperature range from 0 to +80°C.

The permissible relative humidity is between 0 and 95% without condensation.

Design and Dimensions

The device has an aluminum frame with a square shape of 80 x 80 mm and a height of 33 mm for the bulb. The plastic box measures 50 x 50 mm with a depth of 32 mm.

Protection Class

The KNX-LED4-AQB has an IP20 protection class.

Preset Scenes

The device includes 9 pre-set scenes that are not factory editable, but it can be configured for up to 48 custom scenes.
