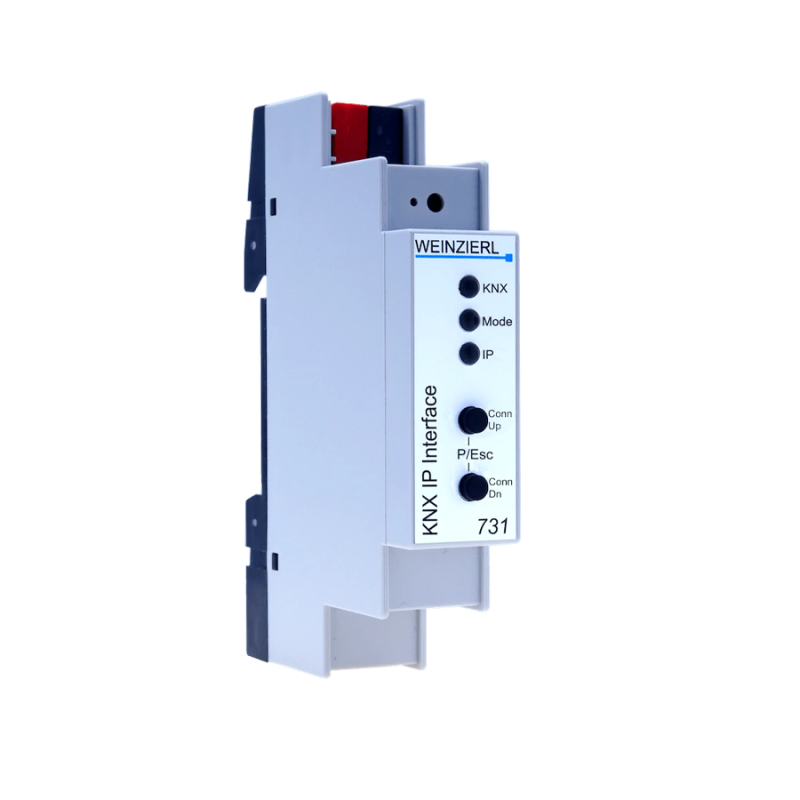

WEINZIERL 5242 KNX IP Interface 731

<p/the WEINZIERL 5242, also known as KNX IP Interface 731, is a compact interface designed to connect a PC to the KNX network. This device allows you to access the KNX network from anywhere on the LAN network, greatly facilitating programming and diagnosis operations.

Key Features

The KNX IP Interface 731 is powered directly from the KNX network, with a current consumption of about 15 mA. Its compact size, equal to 1 module (18 mm), makes it ideal for installation on DIN rails.

Mechanical Data

• Plastic house
• DIN rail mounting
• Width: 1 module (18 mm)

Controls and Indicators

• 2 buttons and 3 multicolor LEDs
• KNX programming button with LED

Ethernet

• 10BaseT
• 5 KNXnet/IP tunneling connections

KNX

• IP/TP transmission medium
• Long frame support

Feeding

• From the KNX network, about 15 mA

Connectors

• KNX bus connector
• RJ-45 LAN socket

The device includes local diagnosis functionality, with buttons and LEDs that indicate the operating status and any communication errors. These characteristics make it an essential tool for programming and managing the KNX network through the Internet.
