WEINZIERL 5193 KNX IP BAOS 777
- MT Code
- WNZ_5193
- Manufacturer Code
- 5193
- Brand
- WEINZIERL

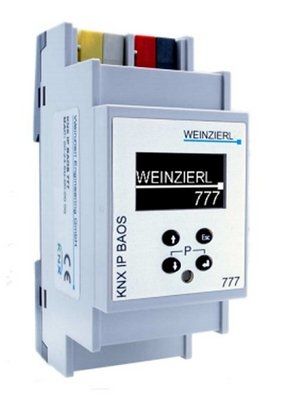

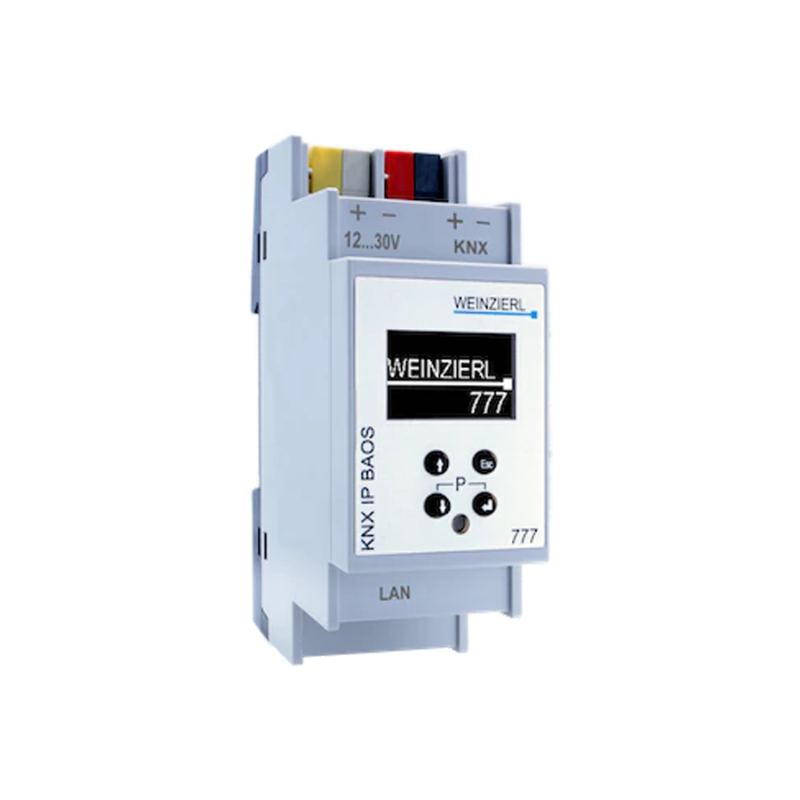

The KNX IP BAOS 777 is a powerful universal device for KNX installation: Thanks to the integrated web server, the device enables the visualization and control of buildings, rooms and functions in a standard web browser on a PC or mobile devices such as smartphones and tablets.
The new, integrated e-mail function allows individual notification of several recipients, e.g. in case of status changes or an alarm. The integration of a Date & Time Server (NTP) makes it possible to obtain the date and time automatically via the Internet and to synchronize one’s own KNX installation. Extensive time functions allow the realisation of a powerful KNX time switch with weekly function.
The configuration is done exclusively with the ETS software – no extra software or tool is required.
The device also offers the function of a KNX IP interface (KNXnet/IP), for example as a programming interface for the ETS. Developers can access all functions via an API with BAOS RESTful Web Services. This allows the device to be used as an application-specific gateway, connecting the KNX bus to the existing IP infrastructure.
Best in Class: the KNX IP BAOS 777 represents a powerful residential gateway for building control with smallest size and minimal power consumption.
Programming Interface
The KNX IP BAOS 777 can be used as an interface to the KNX bus on the telegram level. It is compatible with the KNXnet/IP specification and can be used as bus interface for the ETS® or other programs that support KNXnet/IP tunnelling. It supports up to 8 simultaneous connections.
Residential Gateway
The KNX system is based on a special protocol that is difficult to implement for non-KNX devices. Using Weinzierl’s BAOS architecture, the device maps KNX data to an IT-friendly API (Application Programming Interface). This considerably reduces the effort to connect external applications such as control systems or visualizations with KNX.
The KNX BAOS architecture allows not only access to the runtime data but also to the structure of the KNX installation. All information about rooms of a building as well as the available functions can be read out by a client as metadata. With the help of ETS, the rooms and the functions that should be available to the user are defined.
KNX IP BAOS Protokoll
available in three different versions:
KNX IP BAOS Binary: A binary protocol that is especially suitable for small microcontroller.
KNX IP BAOS Web Services: A URL-based protocol with JSON syntax compatible with KNX IP BAOS 771 and 772.
KNX IP BAOS RESTful Web Services: A URL-based protocol with RESTful JSON syntax, which can be integrated into browser-based web applications.
The device also offers time and recording functions, which are available via the BAOS protocol.
Application Specific Gateway
The KNX IP BAOS 777 can be used as an application specific gateway for connection to non-KNX systems. It can be used, for example, to integrate heating systems or audio applications with ETS integration into the KNX system. For development purposes, the generic ETS product database is available, which offers up to 2 000 data points as a flat list. The data point types can be configured individually via ETS parameters. Of course, own ETS product entries can be developed.
Info1BAOS SDK
Both for the use of the KNX IP BAOS 777 as a residential gateway as well as for the development of application-specific solutions the BAOS protocol must be implemented in the client. For a quick and easy integration of BAOS Binary Services a free SDK is available.
TECHNICAL DATA:
Mechanical data
Housing: plastic
DIN rail mounted device, width: 2 TE
Weigth: approx 90 g
Controls
Four keys for on device settings
Indicators
OLED display
KNX programming LED
Status LEDs at the RJ45
KNX
Medium TP
Long Frame
Device Model System B
compatible with ETS 4.2 (or higher)
Max. Communication Objects: 2000 (with generic database)
Max. Group addresses: 2000
Ethernet
100BaseTX (100Mbit/s)
Supported internet protocols ARP, ICMP, IGMP, UDP/IP, TCP/IP and DHCP
KNXnet/IP Protocols: Core, Device Management, Tunneling
Max. Tunneling Connections: 8
KNX BAOS Binary Protocol V2.1
KNX BAOS Web Services (JSON)
Max. BAOS Connections: 10
Power supply
External power supply 12-30 V DC
Alternative: Power over Ethernet (PoE)
Power consumption: < 1,5 W
Connectors
KNX connector
LAN RJ-45 socket
Power supply connector
Codice a barre | 4260262771933 |
---|---|
Codice Produttore | 5193 |
Brand | WEINZIERL |
