WEINZIERL 5337 KNX IO 546.1 KNX 1.. 10 V dimming actuator 1-fold a

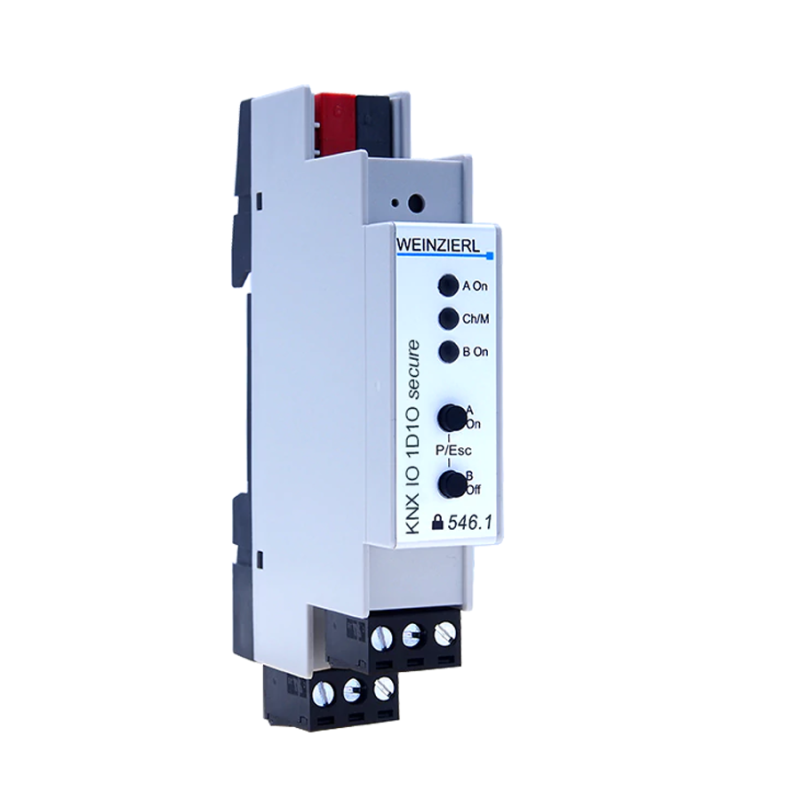

<p/the WEINZIERL 5337 product, also known as KNX IO 546.1 secure (1D1O), is a compact combined dimmer and switching actuator, designed to be integrated into KNX automation systems.

Key Features

This device offers a dimmer channel for connecting active electronic ballasts with a 0/1-10V interface and a bistable relay output.

Dimmer Output

• Dimmer voltage: 0... 10 V/1... 10 V
• Maximum current: 50 mA

Switch Output

• Relay type: 230V~/10A, bistable
• Reduced switching power depending on the type of load (capacitive or inductive)

Functionality

The device supports several comfort features, including scenes, sleep fading, stair lighting, and sequencer. In addition, it is possible to configure the channel for control by switching, relative dimmer and dimmer value.

Controls and Indicators

• 2 buttons and 3 multicolored LEDs for local operation and device status display
• KNX programming button with LED

interconnect

• KNX bus connection (red/black)
• Pluggable screw connection (3-pole) for the dimmer
• Pluggable screw connection (3-pole) for the switch

Mechanical Data

• Plastic case
• DIN rail mounting, width: 1 module (18 mm)
• Weight: about 60 g

Logical and Timer Functions

The device includes 16 independent functions for logical or temporal control.

KNX security

Optionally, the device supports KNX security.
