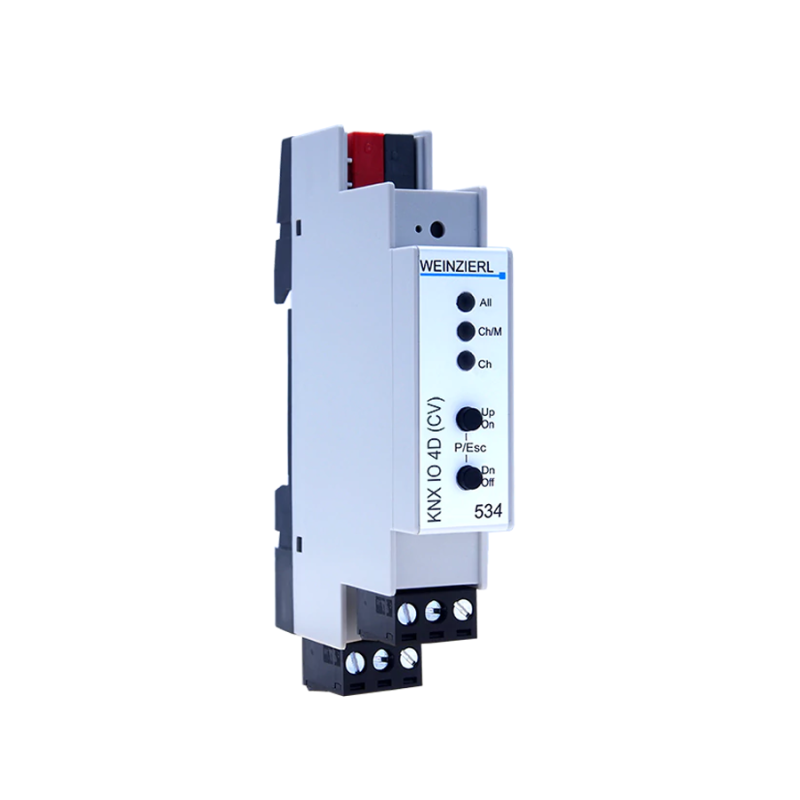

WEINZIERL 5314_2 KNX IO 534 CV

The KNX IO 534 CV (4D) is a compact RGB / RGBW / Tunable White dimming actuator with 4 PWM outputs. The dimming actuator can be used e.g. for LED panels or stripes with RGB / RGBW / Tunable White configuration or as 4 independent PWM dimmer channels. Every configuration allows controlling the channel by switching, rel. dimming and dimming value.

Several comfort functions are integrated as well, including scenes, slumber fading, staircase light and sequencer. Two push buttons and three LEDs allow a local operation and a visualization of the device state. In addition to the output channels the device includes 16 independent functions for logic or timer control.

TECHNICAL DATA:

Mechanical data

Housing: plastic

DIN rail mounted device, width: 1 modules (18 mm)

Weigth: approx 60 g

Controls and indicators

2 buttons and 3 LEDs, multicolor

KNX programming button with LED (red)

KNX

Device Model System B

Compatible with ETS 4.2 (or higher)

Connectors

Connector for KNX Bus (red / black)

Pluggable screw connector (3 poles) for dimming channel 1 and power supply

Pluggable screw connector (3 poles) for dimming channel 2/3/4

Output channel (Dimming)

PWM (frequency 480 / 600 Hz)

Supply voltage: 12 .. 24 V⎓

load current: 6 A total, freely distributable
