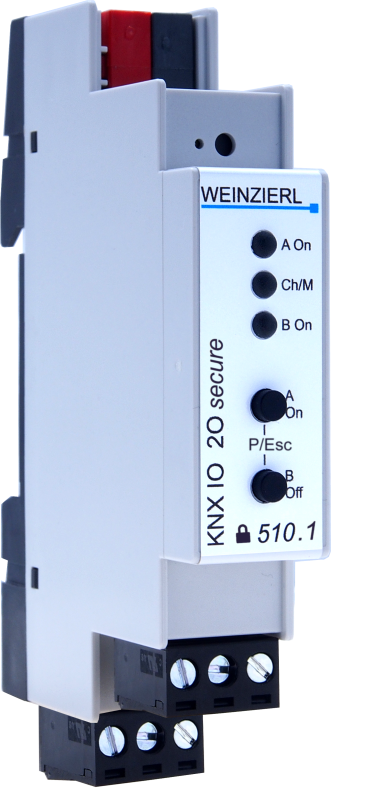

WEINZIERL 5444 KNX IO 510.1 SECURE

The KNX IO 510.1 secure (2O) is a compact switching actuator with 2 bi-stable relay outputs. The actuator provides the function for universal outputs including scene control, timer, staircase lightning and to control heating valves (PWM for thermoelectric valve drives).

Two push buttons and three LEDs allow a local operation and a visualization of the device state. In addition to the output channels the device includes 16 independent functions for logic or timer control.

The device supports KNX Data Security, but may also used without it.

TECHNICAL DATA:

Mechanical data

Housing: plastic (PC)

DIN rail mounted device, width: 1 modules (18 mm)

Weigth: approx 65 g

User Interface

two keys for local device control

three multi color LEDs

KNX programming LED and KNX programming key

KNX

Device Model System B

Compatible with ETS 5 (or higher)

Support of KNX Security

Connectors

Connector for KNX Bus (red / black)

Pluggable screw connector (3 poles) for actuator channel 1

Pluggable screw connector (3 poles) for actuator channel 2

Output channels (actuator)

Relay type: 250V~ / 10A, bi-stable

Depending on load type (capacitive / inductive)

the switching power can be reduced significantly.
