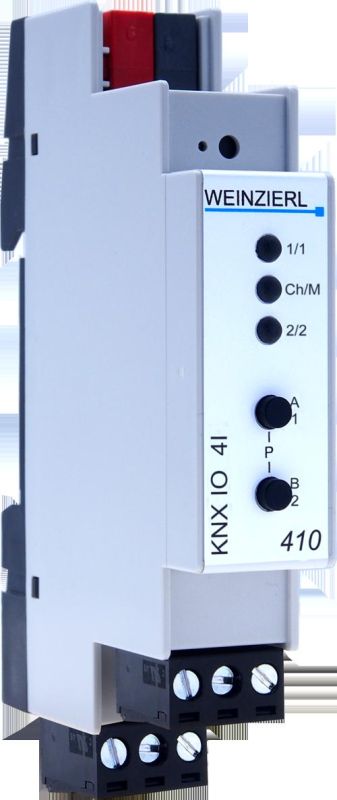

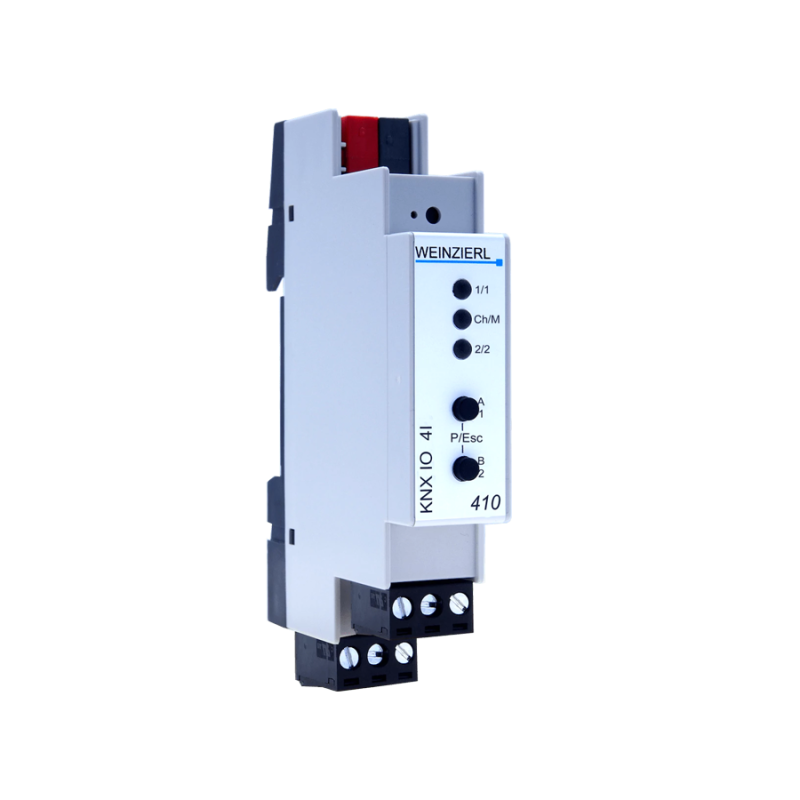

WEINZIERL 5230 KNX IO 410

The WEINZIERL 5230, also known as KNX IO 410 (4I), is a compact binary input device with 4 channels, designed for controlling lights, curtains and other similar devices. This device allows you to connect inputs to conventional switches using an external voltage between 12 and 230 V AC/DC.

Technical characteristics

The input channels can also be used as pulse counters, offering additional flexibility in applications.

Mechanical Data

• Plastic case
• DIN rail mounting, width: 1 module (18 mm)
• Weight: about 50 g

User Interface

• Two buttons for device settings
• Three multi-color LEDs for displaying device status
• KNX LED and programming button

KNX Features

• System Model B
• Compatible with ETS 4.2 (or later)

Connectors

• KNX bus connector (red/black)
• Pluggable screw connector (3-pole) for binary input channels 1 and 2
• Pluggable screw connector (3-pole) for binary input channels 3 and 4

Input Channels (Binary)

• Voltage: 12.. 230 V AC/DC
• Current: < 1 mA

In addition to the input channels, the device includes 16 independent functions for logical or timed control.
