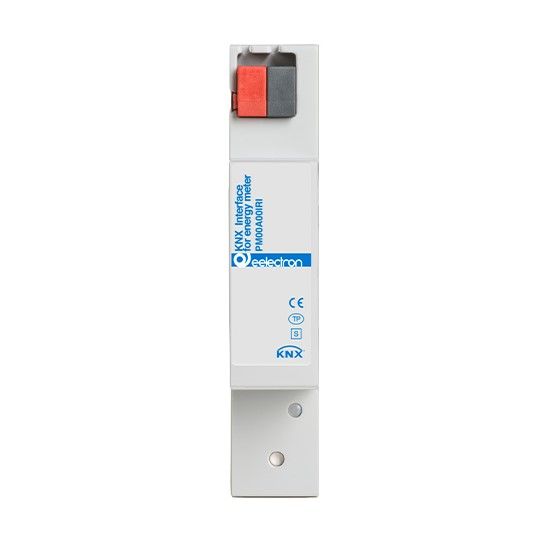

EELECTRON PM00A00IRI KNX INTERFACE FOR ENERGY METER

The KNX interface for EELECTRON PM00A00IRI energy meters is a device designed to integrate electricity meters into the domestic or industrial automation system based on the KNX protocol.

Key Features

This device allows you to connect electricity meters, both single-phase and three-phase, to the EIB/KNX bus, facilitating the collection and management of measurement data.

Power supply and connection

The interface is powered directly from the EIB/KNX bus, reducing the need for additional electrical connections. The connection to the meter is made through the IR optical port available on the side of the meter.

fitment

The device is designed for DIN rail mounting, with a width of 1 module, making it compatible with common installation standards.

Functionality

The PM00A00IRI interface receives measurement data from the meter and transfers them to the KNX system, allowing centralized management and accurate supervision of energy consumption.

Measurement Data

• Measurement data includes, but is not limited to, current, voltage, power factor, and frequency.
• The compatibility with both single-phase and three-phase meters ensures flexibility in the application.

Integration with the KNX System

The device can be fully integrated with the KNX Data Secure protocol, ensuring secure and reliable communication within the automation system.

Applications

• Monitoring energy consumption in residential and commercial buildings.
• Energy management in industrial environments.
• Integration with other KNX devices for complete building management.
