ARCUS-EDS 60400012 KNX-GW-HAN-MBUS-REG

ARCUS-EDS 60400012 Product Description

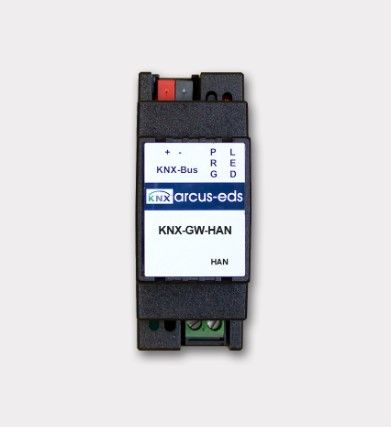

The ARCUS-EDS 60400012 product is an interface designed for integration into the KNX building automation system. This device is specifically designed to connect the KNX bus to other systems, ensuring efficient and reliable communication.

Technical characteristics

The ARCUS-EDS 60400012 product has the following technical characteristics:

• Supply Voltage: It works with a supply voltage between 9 and 30 VDC, with a maximum consumption of 1.5 W.
• KNX connectivity: Equipped with a 2-pin KNX bus terminal (red and black).
• Energy Consumption: Energy consumption is approximately 120 mW at 24 V DC.
• Ambient Temperature: The storage temperature ranges from -25°C to +85°C, while the operating temperature ranges from -25°C to +55°C.
• Ethernet connectivity: Supports a 10/100 Mbit/s Ethernet connection via RJ45 connector.

Functionality

This device offers several key features for building automation:

• Telegram Monitoring and Transfer: It allows the monitoring and transfer of telegrams via KNX bus in real time.
• Telegram log: It is able to save telegrams and view them through a logger.
• Filter and View: Allows you to set a timeframe and a filter for group addresses, and to display up to three different group addresses in a single graph.
• Web integration: You can link websites with KNX files and view them in any browser that supports websockets.

These features make the ARCUS-EDS 60400012 product an essential component for creating integrated and efficient building automation systems.
