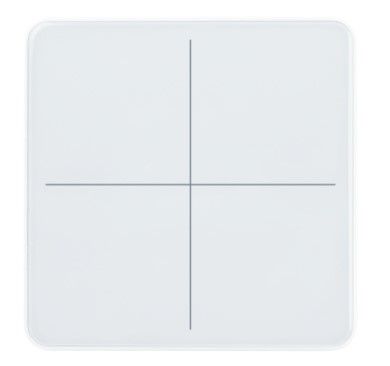

ELSNER 71130 KNX eTR M4- signal white RAL 9003 4-gang Push Butt

MT Code: ELS_71130
Manufacturer Code: 71130
Brand: ELSNER

The KNX eTR M4 button, ELSNER code 71130, is a touch-sensitive control device designed to be integrated into the KNX building bus system. This 4-gang button allows you to manage various functions in the KNX system, such as turning on and off lights, controlling devices, adjusting brightness and activating drives.

Key Features

Touch-sensitive button with 4 touch areas
Configurable as a switch, selector, dimmer, for controlling curtains, blinds, awnings and windows
Can be used as an 8 or 16 bit encoder or for calling up and storing scenarios
Area function when two or more buttons are touched, configurable as a switch, selector or encoder

Temperature Sensor Integration

The KNX eTR M4 button includes an integrated temperature sensor that allows you to measure the ambient temperature. You can combine this value with external temperature readings to create a mixed temperature value, with proportions adjustable in percentage.

LED Indicators and Logic

Each touch area is equipped with an LED whose behavior can be adjusted: it can remain on or off depending on the value of the object, blink or remain on for a set time after pressing the button. The device also includes 2 AND logic gates and 2 OR logic gates, each with 4 inputs, which can be used to configure complex logic using communication objects.
