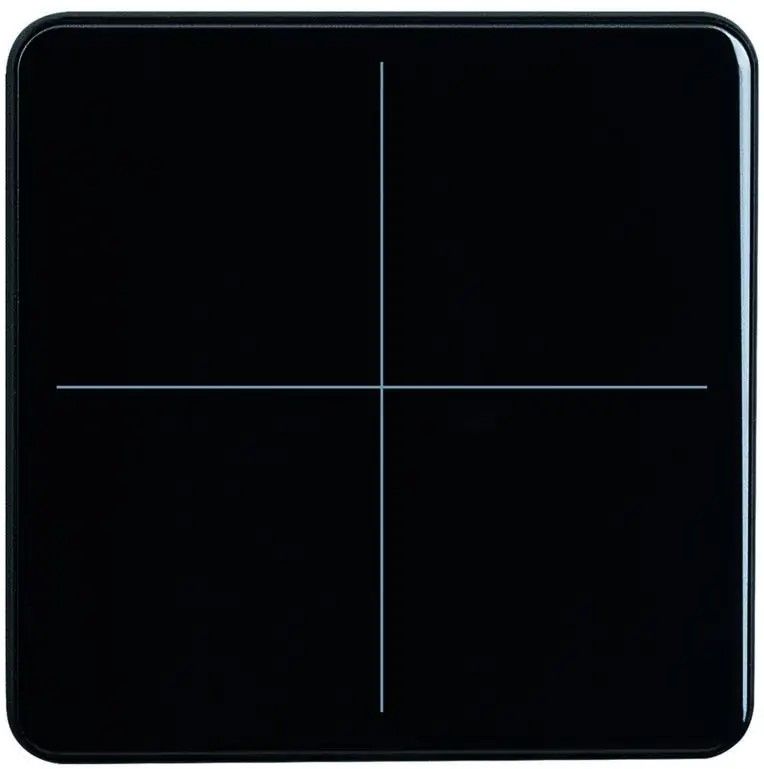

ELSNER 71132 KNX eTR M4- jet black RAL 9005 4-channel button with temperature sensor

ELSNER 71132 Product Description

The KNX eTR M4 button, code 71132, is a touch-sensitive control device designed to be integrated into the KNX building bus system. Available in deep black (RAL 9005), this button offers a wide range of functions for the control and management of various lighting and automation devices and systems.

Key Features

• 4 touch bus buttons configurable as switches, selectors, dimmers, for motor control, as 8 or 16 bit encoders or for calling up and storing scenarios.
• Area function that can be activated by touching two or more buttons, configurable as a switch, selector, 8 or 16 bit encoder or for calling up scenarios.
• An LED for each touch area, on for object value = 1/off for object value = 0, on after pressing the button for a settable time or always off. You can set if the LED blinks at object value = 1.

Measurements and Temperature

• Temperature measurement with mixed values derived from own measurement and from external values (the proportion can be set as a percentage).
• Compensation of the device's self-generated heating through software.

Logic and Communication

• 2 AND logic gates and 2 OR logic gates, each with 4 inputs. 8 logic inputs (in the form of communication objects) can be used as inputs for the logic gates.
• The output of each port can be optionally configured as 1 bit or 2 x 8 bit.
• Configuration carried out using the KNX ETS 5 software.

Installation and Technical Characteristics

• Glass and plastic case, dimensions 81.5 x 81.5 mm, mounting depth 12 mm, total weight about 70 g.
• Deep black color (RAL 9005).
• Direct wall installation or with a Ø 60 mm socket, or with a socket for hollow walls Ø 68 mm.
• Degree of protection IP 10.
• Operating ambient temperature 0... +55°C, storage temperature -30... +85°C, relative humidity 5...95% RH, to avoid condensation.
• KNX bus supply voltage, maximum current 10 mA.
• KNX bus connectors with screw terminals, conductor cross-section 0.6... 0.8 mm², sheathing length 5 mm.
