KNX eTR 208 Light/Sunblind, white RAL 9003 Button for temperature, light, sun protection, white

ELSNER 71190 KNX eTR 208 Light/Sunblind, white RAL 9003 Button for temperature, light, sun protection, white

MT Code: ELS_71190
Manufacturer Code: 71190
Brand: ELSNER

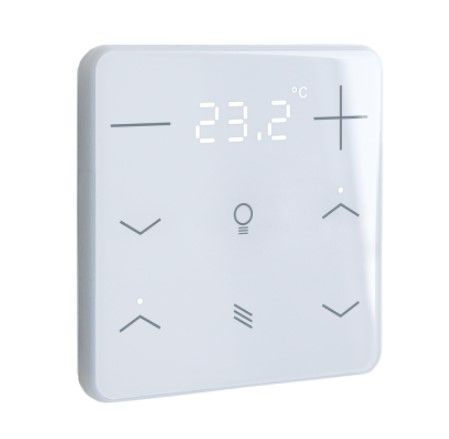

The KNX eTR 208 Light/Sunblind button, code 71190, is a multifunctional device designed for integration into the KNX building bus system. This button has a glass surface with touch sensor buttons, allowing you to recall various functions within the KNX system.

Functionality

The device offers different operating areas:

Temperature control: with two areas (warmer, cooler) and the possibility of adjustment according to separate setpoints or a basic setpoint. It also includes a PI controller for heating (one or two levels) and cooling (one or two levels).
Light control: with two areas (switching and intensity adjustment).
Control of curtains, awnings, blinds or windows: with two areas (up/down with distinction between short and long).

Configuring the LEDs

The LEDs can be configured in different modes: all off, all as ambient lighting or individually controlled.

Area function

When you touch two or more buttons, the device can be configured as a switch, selector, 8-bit or 16-bit encoder, or for calling up scenarios.

Temperature Measurements

The device performs temperature measurements using a mixed value derived from its own measurement and from external values, with the possibility of setting the percentage of contribution. It also provides the output of minimum and maximum values.

Logic and Communication

It includes 2 AND logic gates and 2 OR logic gates, each with 4 inputs. The 8 logic inputs (in the form of communication objects) can be used as inputs for logic gates. The output of each port can be optionally configured as 1 bit or 2 x 8 bit.
