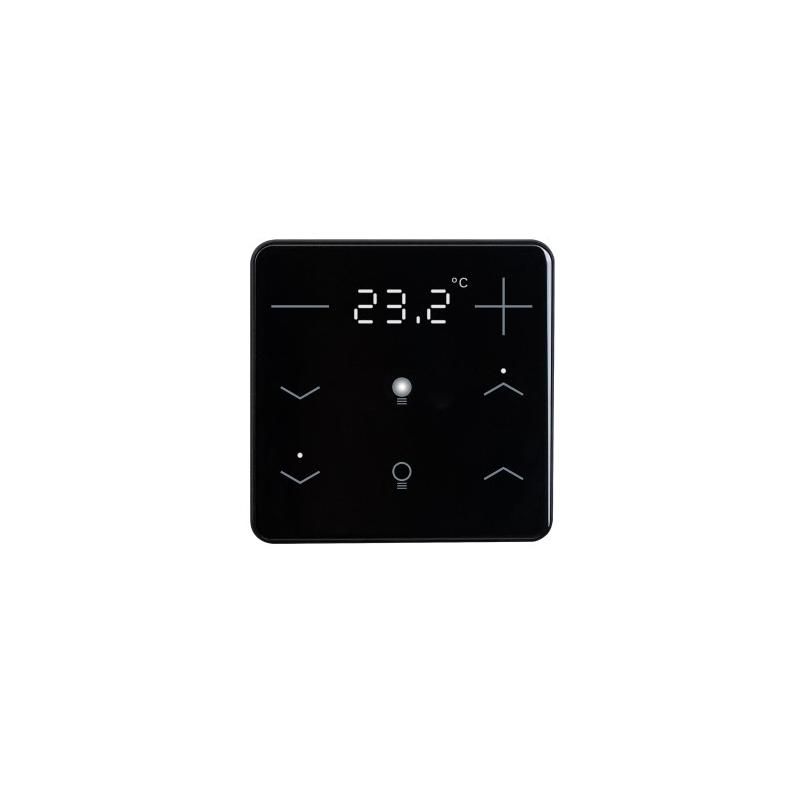

ELSNER 71172 KNX eTR 206 Light, black RAL 9005

The ELSNER 71172 product, known as KNX eTR 206 Light, is a specialized device for temperature and lighting control within the context of KNX home automation systems.

Key Features

This device is designed to be mounted on the wall and has a plastic and glass structure, available in RAL 9003 (white) and RAL 9005 (black) colors.

Control functions

• Integrated with a temperature sensor, the device can measure and process both internal and external temperature values, combining them based on a proportion that can be set as a percentage.
• It offers the possibility to adjust the temperature in two areas (warmer and colder) using a PI controller for heating and cooling at one or two levels.
• It allows adjustment according to separate setpoints or a basic temperature setpoint.

Button and LED functions

• The buttons can be configured for various functions, such as switches, selectors, 8-bit or 16-bit encoders, or to recall predefined scenarios.
• The LEDs can be set to be turned off, used as ambient lighting, or individually controlled.
• The area function allows you to configure specific actions when two or more buttons are touched.

Technical Specifications

• Dimensions: approximately 81.5 x 81.5 mm (width x height), with a mounting depth of approximately 12 mm.
• Total weight: about 70 g.
• Ambient operating temperature: 0°C to +55°C, storage temperature: -30°C to +85°C.
• Relative air humidity: 5% to 95% RH, avoiding condensation.
• Supply voltage: KNX bus voltage.
• Bus current: 25 mA maximum.
• Degree of protection: IP 10.

Installation and Configuration

• The device can be mounted directly to the wall or using a Ø 60 mm socket or a socket for hollow walls with a Ø 68 mm hole.
• The configuration is carried out using the KNX ETS 5 software.
• The button functions and settings can be defined and modified through the ETS software.
