ELSNER 71102 KNX eTR 202 Sunblind- black RAL 9005 Button for You

MT Code: ELS_71102
Manufacturer Code: 71102
Brand: ELSNER

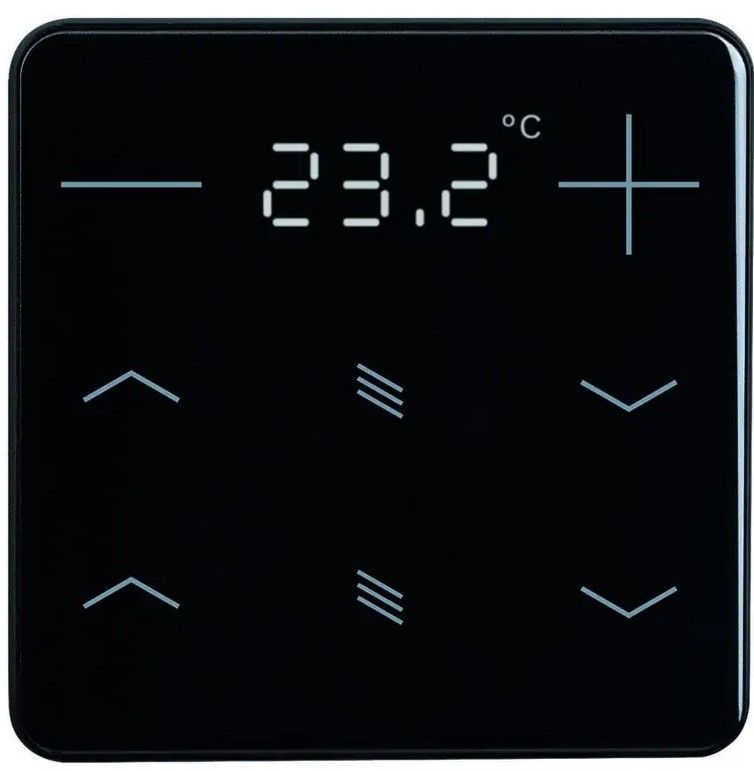

The KNX eTR 202 Sunblind button, model 71102, is a versatile and highly functional device for temperature control and sun protection, produced by ELSNER.

Key Features

This button has a glass surface with a temperature display and +/- touch keys to adjust the temperature. It is equipped with an integrated temperature sensor that can receive external temperature values via the bus and process them with its own data to create an overall temperature value (mixed value).

Temperature Control

The device includes a PI controller for heating and cooling, with the ability to adjust the setpoint temperature using the “+/-” touch keys. The temperature control zone is divided into two areas (warmer, colder).

Sun Protection Features

The KNX eTR 202 Sunblind button has two operating zones for curtains, blinds, blinds or windows, each with two areas (up/down with short/long distinction). The LEDs integrated in the control areas can be set to be turned off, used as ambient lighting, or controlled individually.

Logical and Scenario Functions

The area function, which can be activated by touching two or more keys, can be configured as a switch, selector, 8-bit or 16-bit encoder or for recalling scenarios. The device includes 2 AND logic gates and 2 OR logic gates, each with 4 inputs, and 8 logic inputs (in the form of communication objects) that can be used as inputs for the logic gates.

Technical characteristics

Plastic and glass housing
Color: intense black RAL 9005
Wall mounting (directly or with Ø 60 mm socket, or with wall socket for Ø 68 mm hole)
Degree of protection: IP 10
Dimensions: approximately 81.5 x 81.5 mm (L x H), mounting depth approximately 12 mm
Total weight: about 70 g
Ambient temperature: operating 0... +55°C, storage -30... +85°C
Air humidity: 5..95% RH, avoid condensation
Supply voltage: KNX bus voltage
Bus current: 25 mA maximum
Data output: KNX bus terminals +/-
Group addresses: maximum 254
Assignments: maximum 254
Communication objects: 98 for the KNX eTR 202 Sunblind model
Temperature measurement resolution: 0.1°C
