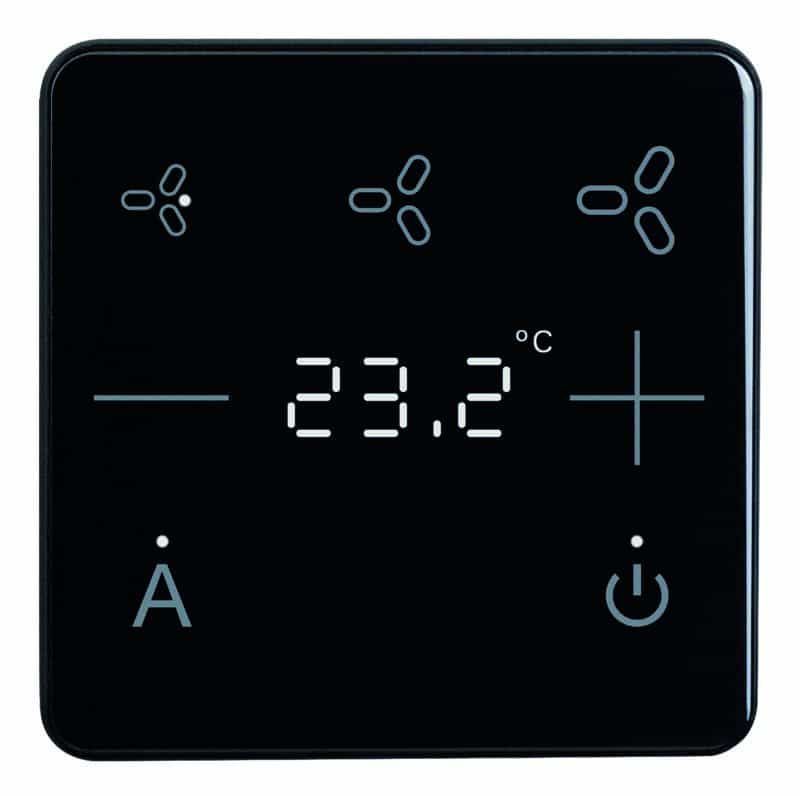

ELSNER 71322 KNX eTR 102 FC- jet black RAL 9005 Ambient temperature controller for Fan Coil A/C

The ELSNER 71322 KNX eTR 102 FC temperature controller is a device designed for the control of air conditioning systems with fan coils. This model is available in black (RAL 9005).

Key Features

• Glass and plastic house
• Dimensions: 81.5 mm x 81.5 mm
• Mounting depth: 12 mm
• Total weight: about 65 g
• Degree of protection: IP20

Control functions

• Control area for 3 fan speeds
• Temperature control area with 2 surfaces (+ warmer, - colder)
• Mode control area with 2 surfaces (auto/manual, on/off air conditioning)

KNX interface

• Medium: TP1-256
• Setup mode: S-Mode
• Maximum group addresses: 254
• Maximum allocations: 254
• Communication objects: 82
• Nominal voltage: 30 V DC SELV
• Power consumption: ≤ 25 mA

Temperature sensor

• Temperature measurement range: -5... +60 °C

Environmental Conditions

• Ambient temperature: -5... +45 °C
• Non-condensing ambient humidity (RH): 5... 95%
• Storage temperature: -25... +70 °C
• Overvoltage category: III
• Pollution degree: 2

Installation and Assembly

The device must be installed and operated only by a qualified electrician. The mount can be done directly on the wall using the supplied fixing materials.

Behavior of LED Lights

The behavior of the LED lights is adjustable, allowing them to be used as ambient lighting or to turn them off if not necessary.
