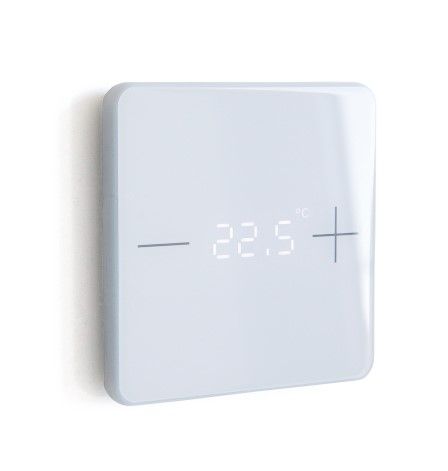

ELSNER 71310 KNX eTR 101-BA2- signal white RAL 9003 Room Temper

The KNX eTR 101-BA2 environmental temperature controller, code 71310, is a device designed to measure and regulate temperature in indoor environments with precision and efficiency.

Key Features

This controller has an illuminated display that displays the current temperature value in white numbers, according to the RAL 9003 coding.

Measurement and Visualization

The device measures the ambient temperature and can combine the measured value with external values, with proportions adjustable in percentage. In addition, it displays the current value or the base setpoint value.

Adjusting the Temperature

The temperature is adjusted through two touch buttons (+/-) that allow you to easily adjust the desired temperature. The controller uses a PI controller for heating (one or two stages) and cooling (one or two stages), depending on the temperature, with separate target values or base temperatures.

Inputs and Sensors

• 2 inputs for binary contacts or T-NTC temperature sensors.
• Temperature measurement range: 0... +55 °C.
• Temperature resolution: 0.1°C.

Installation and Connectivity

The device is configured using the KNX ETS 5 software. The connection is made through spring terminals with a conductor diameter between 0.2... 0.75 mm² for rigid and flexible conductors, and 0.25... 0.34 mm² for flexible conductors with ferrules. The maximum cable length is 10 m.

Accessories and Assembly

• Temperature sensor with mounting bracket included.
• 4 x 20 mm screw anchors and 4 x 3 x 25 mm flat head screws
• Genuine glass and plastic case
• Color: RAL 9003 (white).
