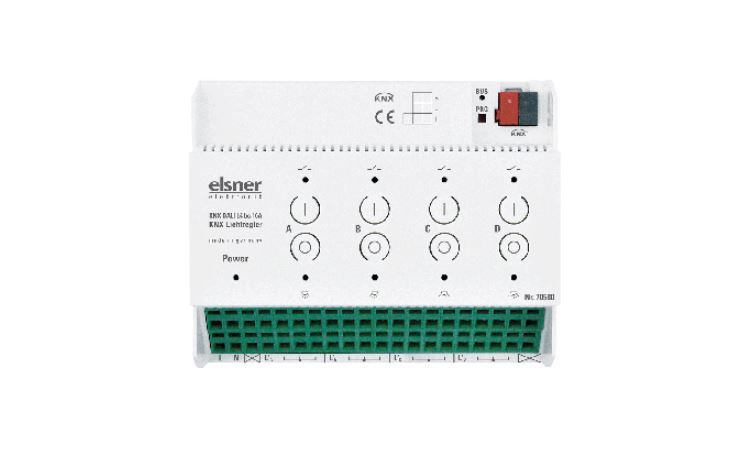

ELSNER 70580 KNX DALI L4 bc 16 A actuator for DALI light control - 4 Outputs

The ELSNER 70580 product, known as KNX DALI L4 bc 16A, is an interface between the KNX bus system and the DALI (Digital Addressable Lighting Interface) lighting system.

Key Features

This device is designed to manage up to 4 channels, each of which can control up to 64 DALI devices. Each channel has a 230V switching output, allowing the control of all DALI devices on a channel with a common signal.

Manual Control and Status Indications

The device includes a manual control with 8 buttons and status LEDs, making it easy to operate and monitor the status of the devices.

Light Control

It offers color temperature control (adjustable white) functionality, RGB/RGBW light control, and HSV light control. In addition, it supports scene management and the state return function.

Management functions

• Color temperature control (adjustable white)
• RGB/RGBW light control
• HSV light control
• Managing scenes
• Return of the state
• Small parts function

Assembly and Protection

The device is mounted on a 6-module DIN support, ensuring a compact and easy installation. The IP20 protection ensures resistance to standard environmental conditions.

Technical Specifications

• Brand: ELSNER
• Number of channels: 4
• DALI devices per channel: up to 64
• Switching output: 230V per channel
• Mounting: 6-module DIN support
• Protection: IP20
