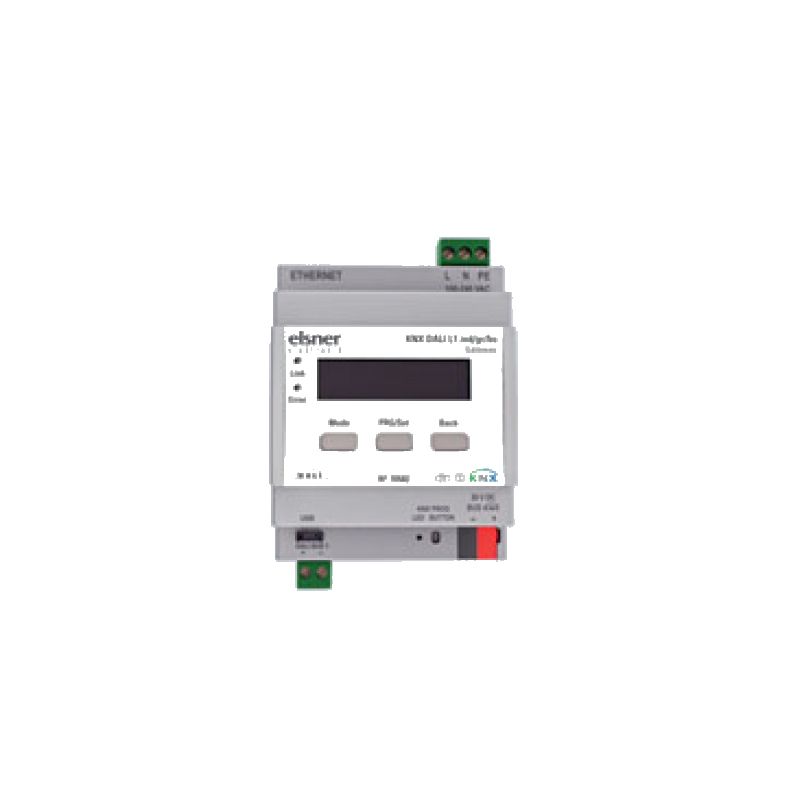

ELSNER 70581 KNX DALI L2 in/gr/bc

The ELSNER 70581 product is a KNX DALI L2 device intended for the integration of lighting systems into industrial and commercial environments.

Key Features

This device is designed to offer efficient and flexible lighting management, thanks to its compatibility with the KNX bus and DALI technology.

Interface and Configuration

The configuration of the device takes place through the ETS (Engineering Tool Software) software, which allows a detailed customization of the functionalities according to the specific needs of the user. The device also includes an Ethernet interface for network settings.

Lighting Functionality

The device supports the management of groups of DALI lights, allowing individual or group control of light sources. In addition, it is possible to configure timing functions, such as on-off delays, and scene control functions with up to 8 different scenes.

Emergency Test

The device includes the test functionality for emergency lighting, which can be managed directly via KNX bus, ensuring compliance with safety regulations.

Indicators and Notifications

The device is equipped with a two-line text display that provides status messages, allowing constant monitoring of the state of the system.

Technical characteristics

• Ambient temperature: -5°C to +45°C
• Ambient humidity (non-condensing): 5% - 80%
• Nominal voltage: 30V DC SELV
• Power consumption: ≤ 10mA
• Conductor diameter: 0.6... 0.8mm
• Stripping length: 5mm

This device is ideal for applications that require centralized and flexible lighting management, ensuring efficiency and compliance with safety regulations.
