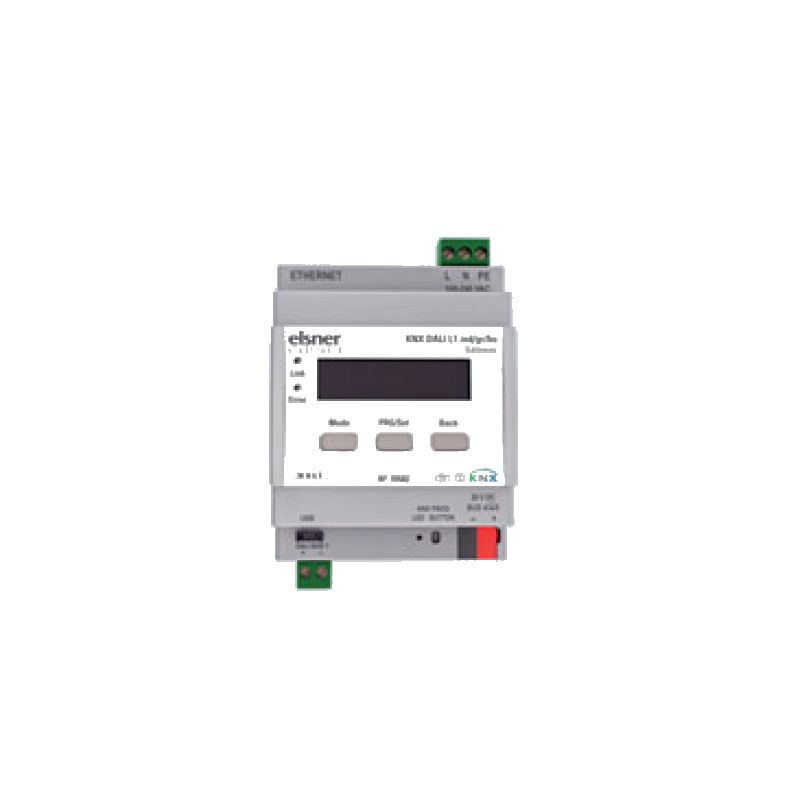

ELSNER 70582 KNX DALI L1 ind/gr/bc
- MT Code
- ELS_70582
- Manufacturer Code
- 70582
- Brand
- ELSNER
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
For DALI lighting control (DALI-2)
Individual control, group control (also combined) or broadcast control
Brightness control, control of color temperature and color values RGB and RGBW
Status messages via two-line text display and KNX bus Emergency lighting test via KNX
line
Configuration with ETS
Ethernet port for network settings, language, statistics, firmware update via interface integrated web.
states, firmware update through the built-in web interface
Micro USB port for system access (for example for software update)
. software update)
- Operating voltage: 110... 240 V AC
- Internal DALI power supply -
DIN rail installation, 4 units, approximately 70 × 90 × 64.5 (L×H×D, mm) - Delivery with installation instructions2 KNX DALI L1
ind/gr/bc: - 1 output for 64 single devices or 16 groups - 16 KNX DALI L2
ind/gr/bc scenes:
- 2 outputs for 2×64 single devices or 2×16 groups
-
2×16
scenes
Data Sheet
Codice a barre | 8000002522256 |
---|---|
Codice Produttore | 70582 |
Brand | ELSNER |
